Racing Suction R LEGACY B4 Explanation of the product Application chart
LEGACY B4 BL5
Racing Suction R

Code No. 70020-AF011









■ Feature

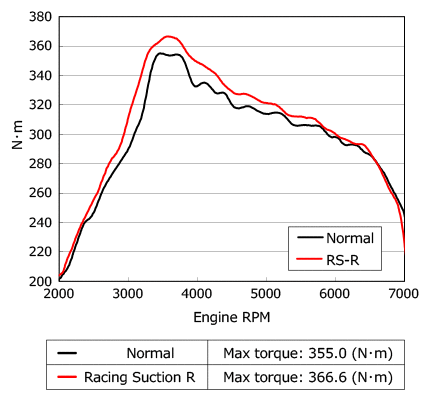

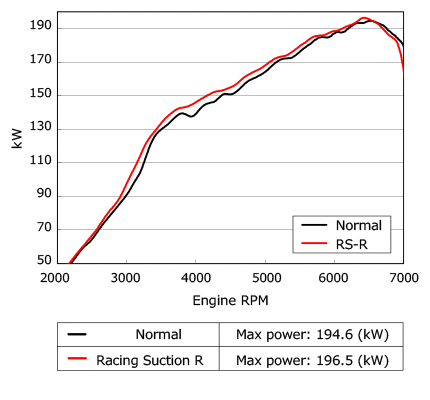

High RPM power and mid range RPM response get much better.
Because we have changed the intake manifold under the stock resin pipe to aluminum buff pipe, it can reduce big resistance of the air flow. This gives more boost up and more you tune your car the result will be much more effective.







Impression stock bad 1 2 3 4 5 good
Low-mid RPM RSR bad 1 2 3 4 5 good
Impression stock bad 1 2 3 4 5 good
Hight RPM RSR bad 1 2 3 4 5 good

Intake sound stock small 1 2 3 4 5 big
Revving RSR small 1 2 3 4 5 big
Intake sound stock small 1 2 3 4 5 big
Driving RSR small 1 2 3 4 5 big







Vehicle Classification Model Engine Model Year Style Size Code No. Price Remarks
LEGACY B4 CBA- BL5 EJ20Y 07/05-09/05 Racing Suction R Φ200-80/Yellow 70020-AF011 * Discontinued. For MT. For applied model E and F. Not tested on 6MT Applied F.
