Racing Suction R
JIMNY
Explanation of the product Application chart
JIMNY JB23W

Racing Suction R

Code No. 70020-AS004

*Discontinued.





■Feature

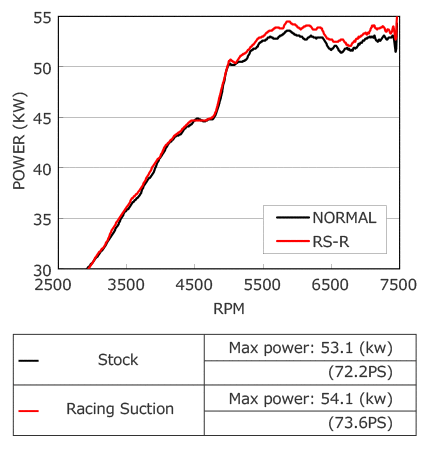

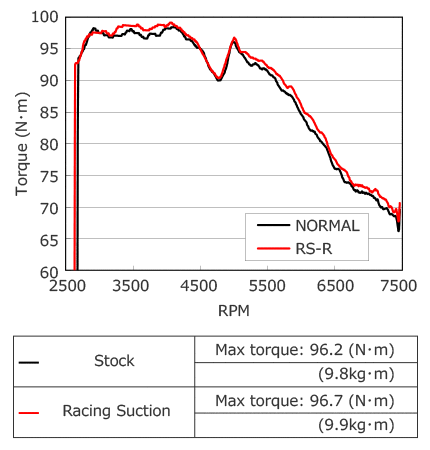

  • The peak power improvement is 1.0kW and torque improvement is 0.5N/m but mid to high RPM power and torque is also improved.
  • Intake sound is also very cool sporty sound.

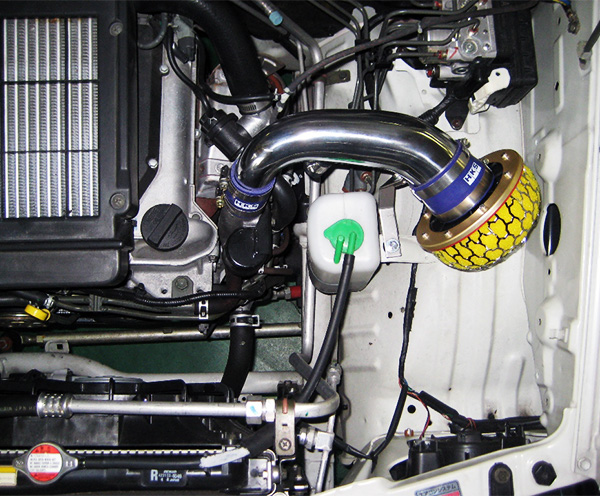

  • The buffed aluminum pipe looks beautiful in the engine room.





■Features Comparison

Specification : 社外 MUFFLER（Data: ABA-JB23W）





Impression Stock Bad 1 2 3 4 5 Good
Low/mid RPM RSR Bad 1 2 3 4 5 Good



Impression Stock Bad 1 2 3 4 5 Good
High RPM RSR Bad 1 2 3 4 5 Good
Intake sound Stock Small 1 2 3 4 5 Loud
Revving RSR Small 1 2 3 4 5 Loud



Intake sound Stock Small 1 2 3 4 5 Loud
Driving RSR Small 1 2 3 4 5 Loud









Vehicle Classification Model Engine Model Year Style Size Code No. Manual Remarks
JIMNY GF-, GH-, TA-, ABA- JB23W K6A(TURBO) 98/10 -18/06 Racing Suction R Φ150-70/Yellow 70020-AS004 * Discontinued.
