Racing Suction R：CIVIC TYPE R

Racing Suction R

CIVIC TYPE R

Explanation of the product Application chart

CIVIC TYPE R FD2

Code No. 70020-AH012

*Discontinued.

■Feature

Length and layout of the intake pipe were designed to improve torque at middle and high rpm range.
Although the maximum horsepower is the same level as stock, horsepower will increase almost whole rpm range after VTEC is changed.
It has sporty intake sound.
With the special heat insulator that fits to stock intake duct, intake air temperature will be stable at the same level as stock intake system.

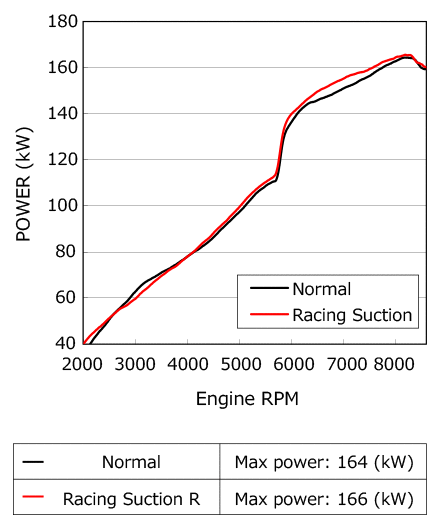

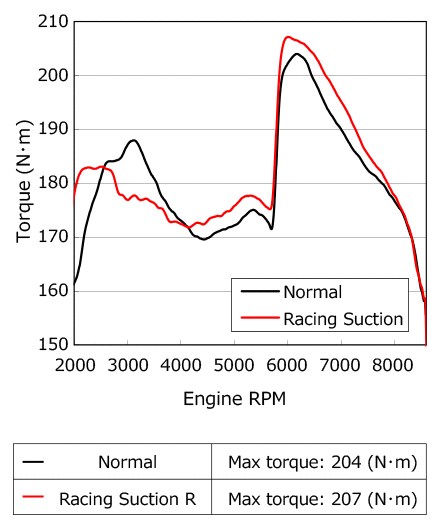

■Performance Comparison

Vehicle Specification : HKS Es Premium MUFFLER，Super Fire Racing M40i

Impression	Stock	Bad	1	2	3	4	5	Good
Low/mid rpm	RSR	Bad	1	2	3	4	5	Good

Impression	Stock	Bad	1	2	3	4	5	Good
High rpm	RSR	Bad	1	2	3	4	5	Good

Intake sound	Stock	Small	1	2	3	4	5	Loud
Revving	RSR	Small	1	2	3	4	5	Loud

Intake sound	Stock	Small	1	2	3	4	5	Loud
While driving	RSR	Small	1	2	3	4	5	Loud

Vehicle	Classification	Model	Engine	Model Year	Style	Size	Code No.	Manual	Remarks
Vehicle	Classification	Model	Engine	Model Year	Style	Size	Code No.	Manual	Remarks
CIVIC TYPE R	ABA-	FD2	K20A	07/03 -10/08	Racing Suction R	Φ200-100/Yellow	70020-AH012		* Discontinued. W/ special heat insulator.
