Racing Suction R
INSIGHT
Explanation of the product Application chart
INSIGHT ZE2

Racing Suction R

Code No. 70020-AH014

*Discontinued.









■Feature

  • Horsepower at middle and high rpm range will be increased with enhanced torque for all rpm range.
  • Intake sound during acceleration will be sporty.
  • Since it is designed for stock management characteristic, ECU setting is not required.
  • The polished aluminum pipe will improve appearance in the engine compartment.

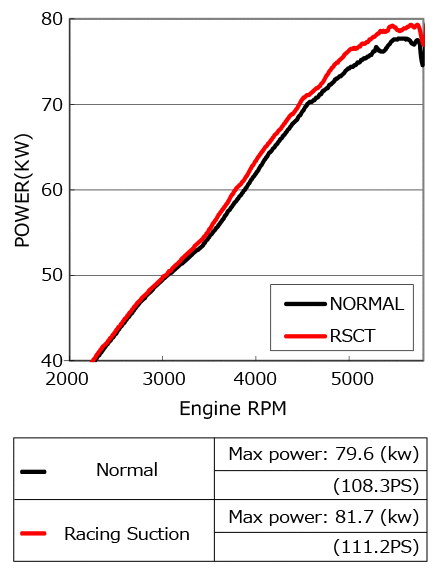

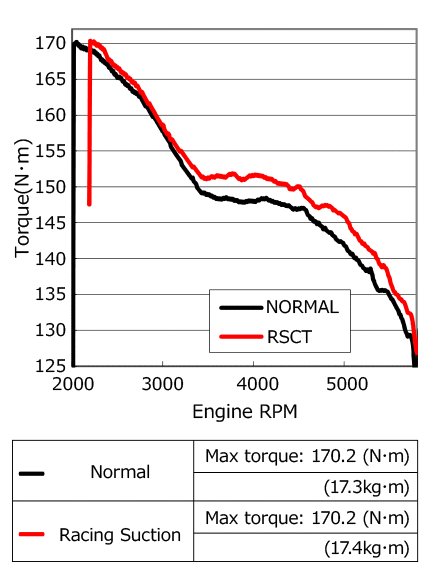

■Performance Comparison

Vehicle Specification : HKS MUFFLER





Impression Stock Bad 1 2 3 4 5 Good
Low/mid rpm RSR Bad 1 2 3 4 5 Good



Impression Stock Bad 1 2 3 4 5 Good
High rpm RSR Bad 1 2 3 4 5 Good
Intake sound Stock Small 1 2 3 4 5 Loud
Revving RSR Small 1 2 3 4 5 Loud



Intake sound Stock Small 1 2 3 4 5 Loud
While driving RSR Small 1 2 3 4 5 Loud









Vehicle Classification Model Engine Model Year Style Size Code No. Manual Remarks
INSIGHT DAA- ZE2 LDA 09/02 -14/03 Racing Suction R Φ150-80/Yellow 70020-AH014 * Discontinued.
