Racing Suction R
N-ONE
Explanation of the product Application chart
N-ONE JG1

Racing Suction R

Code No. 70020-AH018

*Discontinued.

■FEATURES

  • Both the peak power and torque are improved.
  • Intake sound is sportier which feels great.
  • We have designed not to interfere with the stock ECU so doesn't need to resetting.

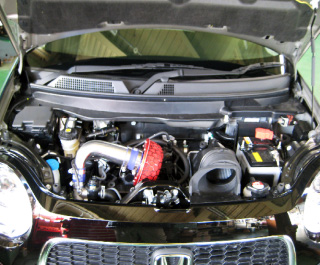

  • The engine room looks nicer with the polished aluminum pipe.

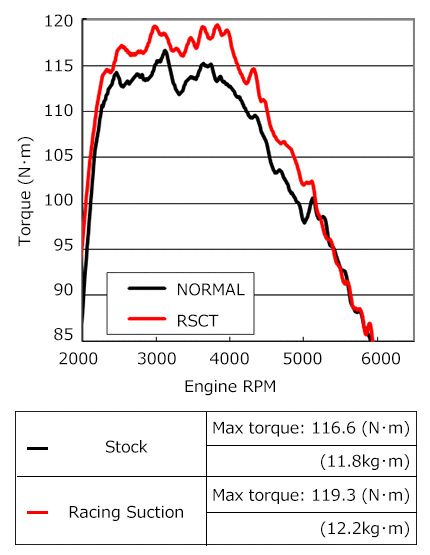

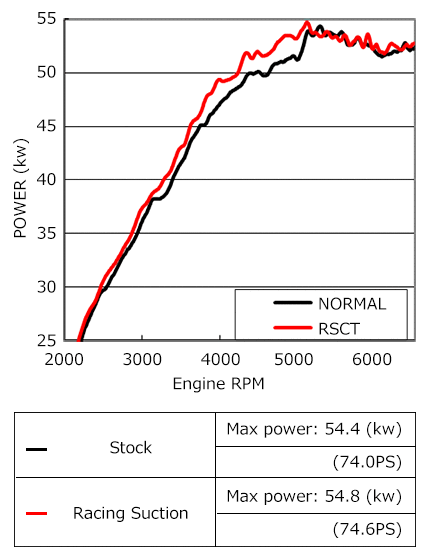

■COMPARISON

Test vehicle spec: HKS muffler





Inpression Stock Bad 1 2 3 4 5 Good
Low/mid RPM RSR Bad 1 2 3 4 5 Good



Inpression Stock Bad 1 2 3 4 5 Good
Hign RPM RSR Bad 1 2 3 4 5 Good
Intake sound Stock Small 1 2 3 4 5 Loud
Revving RSR Small 1 2 3 4 5 Loud



Intake sound Stock Small 1 2 3 4 5 Loud
On driving RSR Small 1 2 3 4 5 Loud









Vehicle Classification Model Engine Model Year Style Size Code No. Manual Remarks
N-ONE DBA- JG1 S07A(TURBO) 12/11 -20/03 Racing Suction R Φ150-60/Red 70020-AH018 * Discontinued.
