Racing Suction R
S660
Explanation of the product Application chart
S660 JW5

Racing Suction R

Code No. 70020-AH020

*Discontinued.

■FEATURES

  • Sporty intake sound created by this kit boosts mood while driving.
  • An air control plate is included to adjust the level of the intake sound.
  • To prevent water from entering engine bay and air cleaner, a rain cover and cushion tape are included.
  • Resetting is not required since this kit was designed to minimize the adverse effect on the stock ECU management.
  • Buffed aluminum pipe improves the appearance of the engine bay.
  • Available for use with Flash Editor(Phase2).

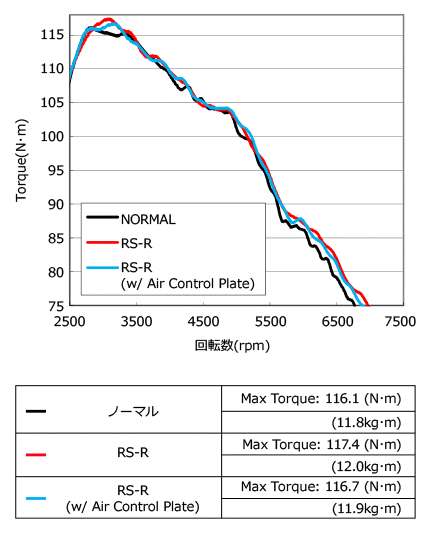

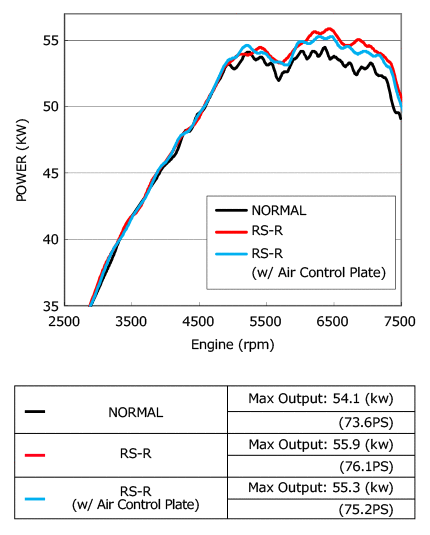

■COMPARISON

Vehicle Specification: HKS Muffler





Impression Stock Bad 1 2 3 4 5 Good
Low-mid RPM RSR Bad 1 2 3 4 5 Good
RSR
(w/plate)		 Bad 1 2 3 4 5 Good



Impression Stock Bad 1 2 3 4 5 Good
High RPM RSR Bad 1 2 3 4 5 Good
RSR
(w/plate)		 Bad 1 2 3 4 5 Good
Intake sound Stock Small 1 2 3 4 5 Loud
Revving RSR Small 1 2 3 4 5 Loud
RSR
(w/plate)		 Small 1 2 3 4 5 Loud



Intake sound Stock Small 1 2 3 4 5 Loud
Driving RSR Small 1 2 3 4 5 Loud
RSR
(w/plate)		 Small 1 2 3 4 5 Loud









Vehicle Classification Model Engine Model Year Style Size Code No. Manual Remarks
S660 DBA- JW5 S07A(TURBO) 15/04 -19/12 Racing Suction R Φ150-60/Red 70020-AH020 * Discontinued.
