CARBON RACING SUCTION
GR COROLLA
Explanation of the product Application chart
GR COROLLA GZEA14H

CARBON RACING SUCTION

Code No. 70028-AT003





HKS intake set includes open air cleaner “Super Power Flow” and high quality CFRP intake pipe.

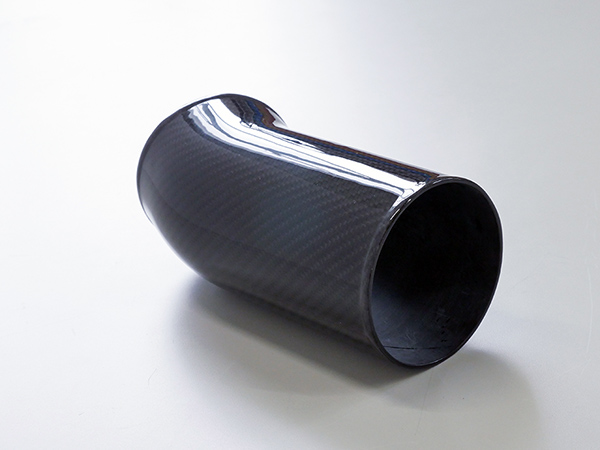

High quality CFRP intake pipe

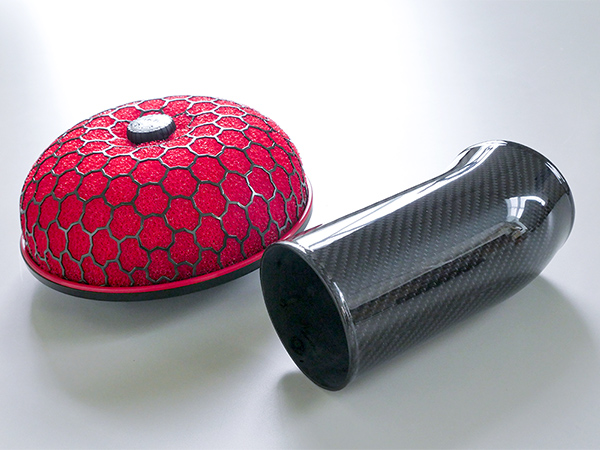

Low air intake resistance in combination with Super Power Flow

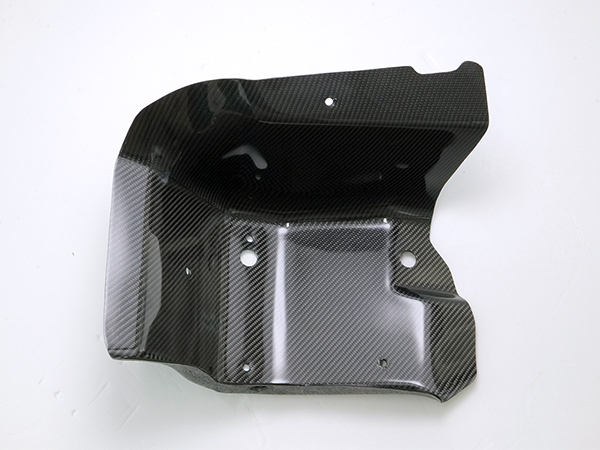

Aesthetics and functional CFRP heat insulators

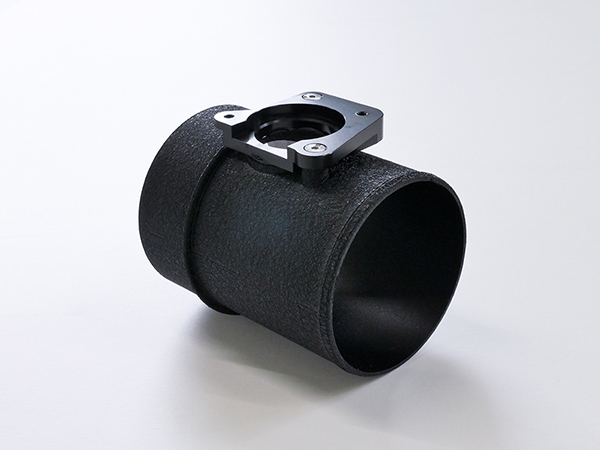

Wrinkle finished adapter pipe





【Features】

  • The 3K twill weave is selected for the CFRP intake pipe, creating a premium feel and powerful racing car-like appearance.
  • Smooth inner surface and high durability are achieved through a high-temperature, high-pressure hardening process using silicone bags on the inside of the intake pipe.
  • Low intake resistance is achieved by the bare type air cleaner “Super Power Flow” and optimized suction pipe layout.
  • The air guide / heat insulator helps to intake fresh air for stable performance. The air guide is also made of CFRP, and together with the suction pipe, creates high quality appearance.
  • The adapter pipe for the air flow sensor is painted with black wrinkle finish paint.
  • Sporty intake sound unique to the open air cleaner is a key point.

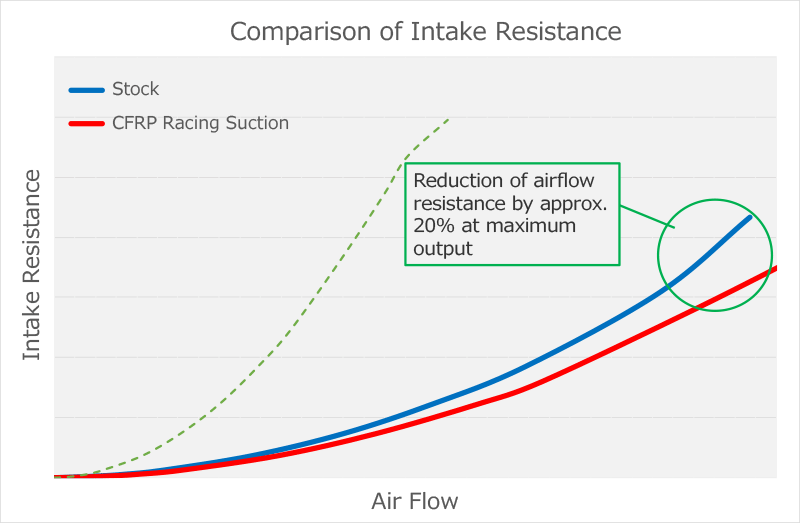

Reduction of airflow resistance by up to approximately 20% in flow bench tests









TEST CAR
MODEL GR COROLLA MORIZO Edition
ENGINE STOCK
INTAKE CARBON RACING SUCTION
EXHAUST HKS LEGAMAX Sports
CONTROL STOCK

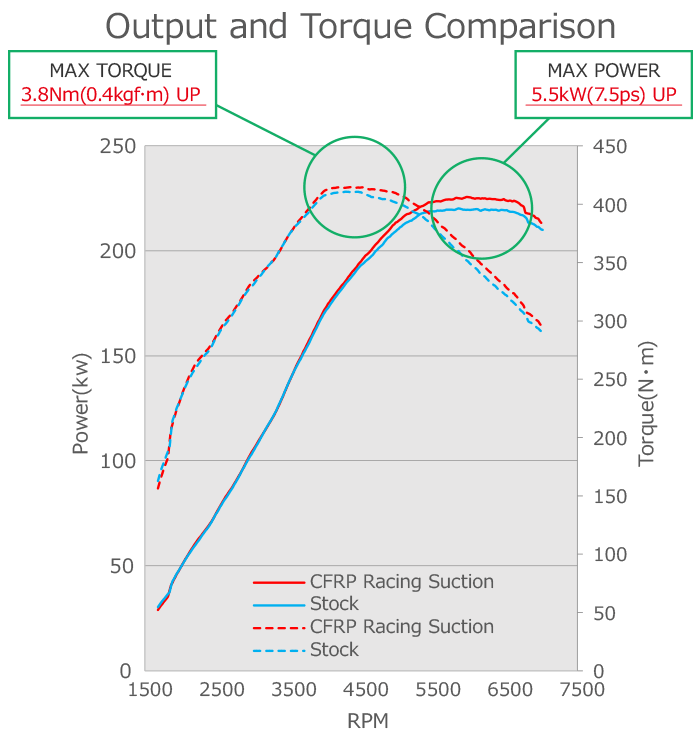

Output Characteristics
  STOCK INTAKE RACING SUCTION
POWER 220.2kW(299.4ps)
@6700rpm		 225.7kW(306.9ps)
@5960rpm
TORQUE 410.8Nm(41.9kgf-m)
@4280rpm		 414.6Nm(42.3kgf-m)
@4360rpm



In the chassis dyno test, we confirmed an improvement of 5.5 kW (7.5 ps) in maximum output and 3.8 Nm (0.4 kgf-m) in maximum torque compared to the stock model.







Vehicle Classification Model Engine Model Year Style Size Code No. Manual Remarks

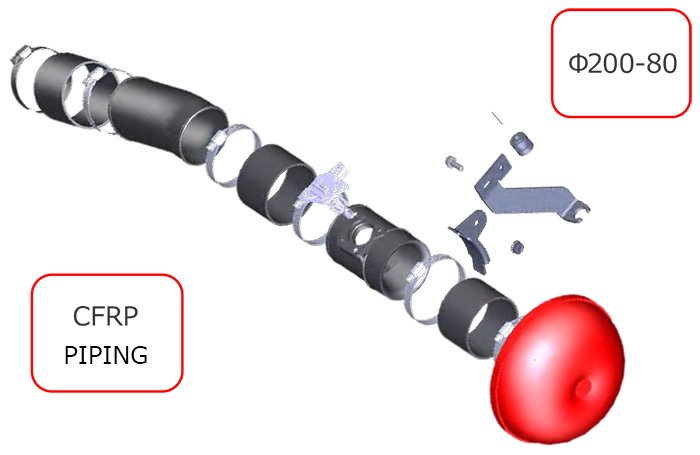

GR COROLLA GZEA14H G16E-GTS 22/12 - CARBON RACING SUCTION Φ200-80/Red 70028-AT003 *Incompatible with models other than the Japanese model.
・Compatible with "MORIZO Edition".
・Comapatibility with 2025 facelift model has not been confirmed.
