silent Hi-Power
SWIFT
SWIFT DBA-ZC71S

Code No. 32016-AS002

*Discontinued.









Cert. No. JQR20101148
Vehicle SWIFT
Model ZC71S
Engine K12B
Model Year 07/05 - 10/08
Shape of muffler HP (TYPE-H)
(silent Hi-Power)
Main material S304
Diameter of tip 94
Diameter of center pipe 50 (*1)
Close noise level Stock 85
HKS 93
About road clearance(*2) Clearance 175mm

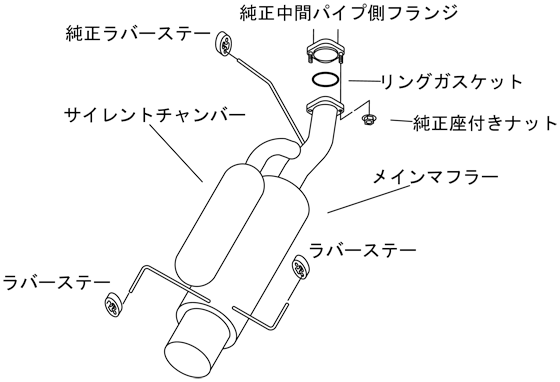

Portion of the kit Main silencer
Remarks
Product Weight
Remarks

* Discontinued.  Compatible with grade "XE" and "XG"



About HKS muffler

*1: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.

★ Exhaust noise level at idle.
