silent Hi-Power SWIFT Explanation of the product Application chart

SWIFT DBA-ZC13S
Code No. 31019-AS007

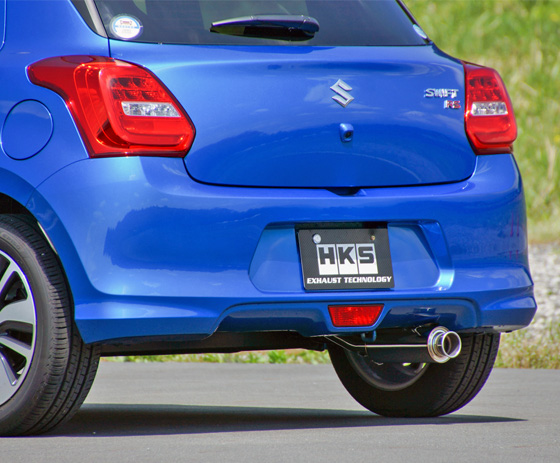

A muffler that emphasizes a sporty character of the car with stronger look and a deep sound
Use of small φ100 silencer allows retaining high clearance and a clean look. The exhaust doesn't have an uncomfortable drone and produces a very pleasant low sporty sound.




Cert. No. JQR10171095

Vehicle SWIFT
Model ZC13S
Engine K10C(TURBO)
Model Year 17/01 -
Shape of muffler HP(TYPE-H)
(silent Hi-Power)
Main material S304(*2)
Diameter of tip 65
Diameter of center pipe 50(*3)
Close noise level Stock 78
HKS 81
About road clearance(*4) Clearance 144mm

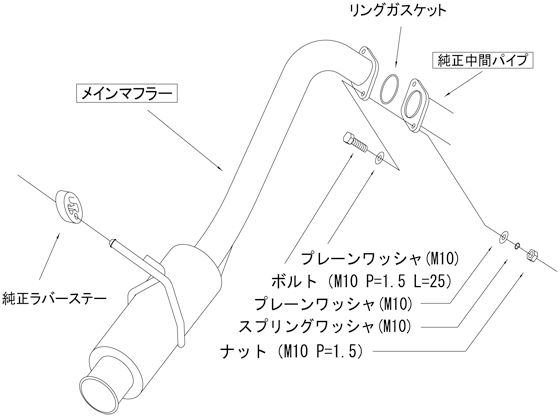

Portion of the kit Mid Pipe Shell
Remarks
Product Weight 3kg





Remarks

For RSt Model



About HKS muffler

*1: About silencer shell type of Silent Hi-Power
TYPE-S/Oval silencer for noise reduction.
TYPE-H/Round silencer for performance.

*2: Main material in the component figure.

: SUS304/High quality stainless steel.
: SUH409/Stainless steel commonly used for stock exhaust.

*3: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*4: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.

★ Exhaust noise level at idle.
