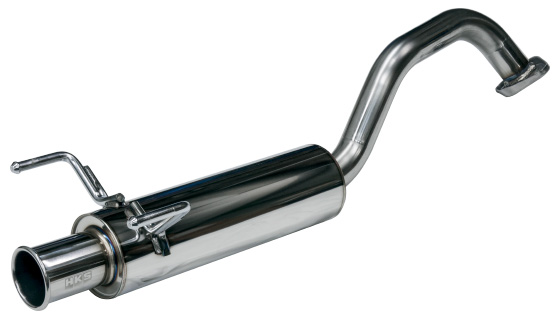

Code No. 31019-AS010
| Cert. No. | JQR10181097 |
|---|

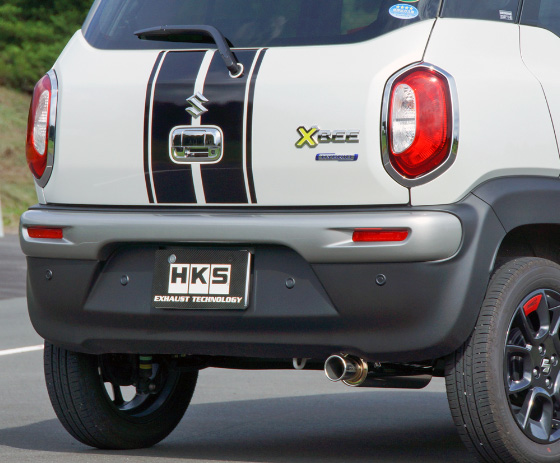

| Vehicle | XBEE |
|---|---|
| Model | MN71S |
| Engine | K10C(TURBO) |
| Model Year | 17/12 - |
| Shape of muffler | HP (TYPE-H)
(silent Hi-Power) |
|
|---|---|---|
| Main material | S304 | |
| Diameter of tip | 65 | |
| Diameter of center pipe | 45 (*1) | |
| Close noise level | Stock | 79 |
| HKS | 85 | |
| About road clearance(*2) | Clearance | 168 |

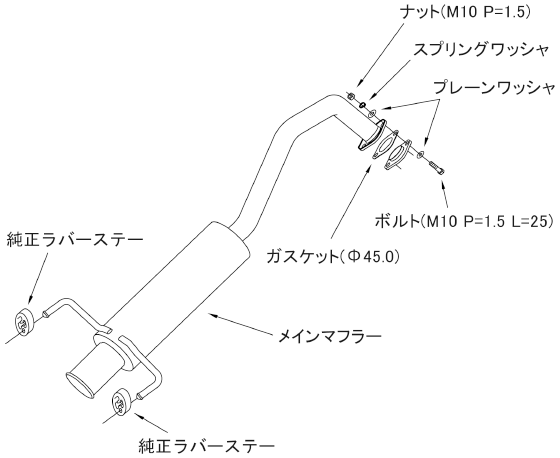

| Portion of the kit | R-beam | |
| Remarks | The vehicle height remains the same as stock. | |
| Product Weight | 3.4kg | |
Remarks
31019-AS010 Only for 2WD / Weight is -27% of the stock
About HKS muffler
*1: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.
*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.
Caution: Hook, bracket, stay may be changed without prior notice.
★ Exhaust noise level at idle.
