silent Hi-Power SHUTTLE Explanation of the product Application chart

SHUTTLE DAA-GP7
Code No. 32016-AH033



Sophisticated Low-tone at Low Speed & Exhilarating Sound at High Speed

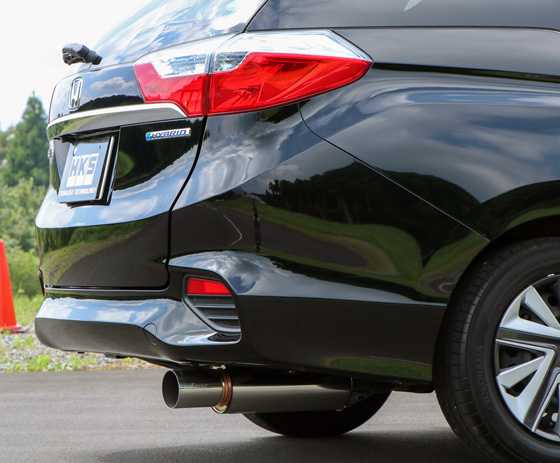

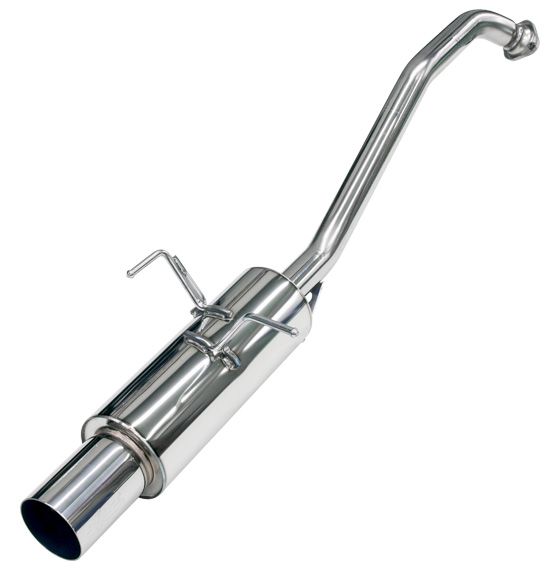

130mm silencer and 94mm exhaust tip create impressive rear view.
Under the daily street driving, the exhaust sound is sophisticated low tone, but at acceleration of the vehicle, medium and high tone pleasant sporty exhaust sound is created.




Cert. No. JQR10181128

Vehicle SHUTTLE
Model GP7
Engine LEB-H1
Model Year 15/05 - 17/08
Shape of muffler HP(TYPE-H)
(silent Hi-Power)
Main material S304(*2)
Diameter of tip 94
Diameter of center pipe 50.8(*3)
Close noise level Stock 79
HKS 91
About road clearance(*4) Clearance 145mm
Portion of the kit Stock Mid Pipe
Remarks
Product Weight 5.6kg





Remarks

For FF Model. The acceleration noise certificate is not available for the model after 2017/9. Not compatible with the vehicle with Modulo rear lower skirt and Mugen rear under spoiler.



About HKS muffler

*1: About silencer shell type of Silent Hi-Power
TYPE-S/Oval silencer for noise reduction.
TYPE-H/Round silencer for performance.

*2: Main material in the component figure.

: SUS304/High quality stainless steel.
: SUH409/Stainless steel commonly used for stock exhaust.

*3: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*4: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.

★ Exhaust noise level at idle.
