Code No. 32018-AS006
The product design employs a side exhaust tip layout and dual tail exhaust tips for each model.
It looks stylish and dynamic appearance due to installing the heat insulator which is bearing the HKS logo in the silencer that can be seen from the side of the car.
That is a safety consideration of the passengers to avoid touching the hot muffler when getting on/off the car.
| Cert. No. | JQR20202008 |
|---|
| Vehicle | JIMNY SIERRA |
|---|---|
| Model | JB74W |
| Engine | K15B |
| Model Year | 18/07 - 24/03 |
| Shape of muffler | N-3 (Titan)
(LEGAMAX TRAILMASTER) |
|
|---|---|---|
| Main material | S304 | |
| Diameter of tip | N-3 (Titan) | |
| Diameter of center pipe | 50.8 → 45 x 2 (*1) | |
| Close noise level | Stock | 81 |
| HKS | 88 | |
| About road clearance(*2) | Clearance | 210mm |

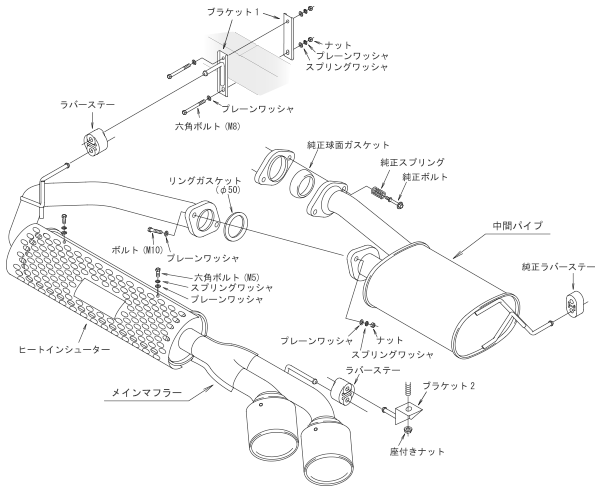

| Portion of the kit | Front reading arm | |
| Remarks | ||
| Product Weight | 9.0kg | |
Remarks
JIMNY SIERRA is the name in Japan
About HKS muffler
*1: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.
*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.
Caution: Hook, bracket, stay may be changed without prior notice.
★ Exhaust noise level at idle.
