LEGAMAX TRAILMASTER JIMNY Explanation of the product Application chart

JIMNY 3BA-JB64W
Code No. 31021-AS004



Stylish Design
Side exhaust with dual tail tips specially designed for JIMNY. A silencer is visible from the side of the vehicle and it's wrapped with a heat shield insulator with HKS logo for a stylish and dynamic appearance.
Obsession with Sound Quality
Sound tuning that provides a comfortable deep low tone with reduced drone sound. Enjoy sporty sound raising with engine RPM.




Cert. No. 4957266940099

Vehicle JIMNY
Model JB64W
Engine R06A(TURBO)
Model Year 18/07 -
Shape of muffler N-3 (Titan)
(LEGAMAX TRAILMASTER)
Main material S304
Diameter of tip 75 x 2
Diameter of center pipe 50.8→45 x 2(*1)
Close noise level Stock 77
HKS 86
About road clearance(*2) Clearance 200mm

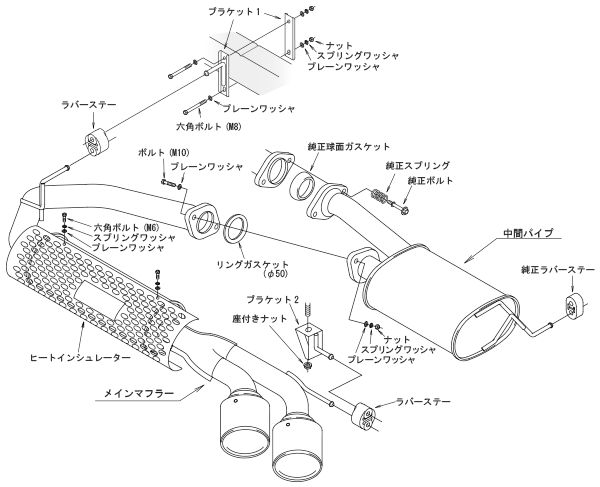

Portion of the kit Front reading arm
Remarks
Product Weight





Remarks

This vehicle is sold in Japan only. (660cc version)



About HKS muffler

*1: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.

★ Exhaust noise level at idle.
