Code No. 31019-AF133
| Cert. No. | JQR30214079 |
|---|
| Vehicle | LEVORG |
|---|---|
| Model | VN5 |
| Engine | CB18(TURBO) |
| Model Year | 20/11 - |
| Shape of muffler | HP
(Hi-Power SPEC-L II) |
|
|---|---|---|
| Main material | S304 | |
| Diameter of tip | 94 L&R | |
| Diameter of center pipe | 65 - 50.8 x 2 (*1) | |
| Close noise level | Stock | 73 |
| HKS | 83 | |
| About road clearance(*2) | Clearance | 145mm |

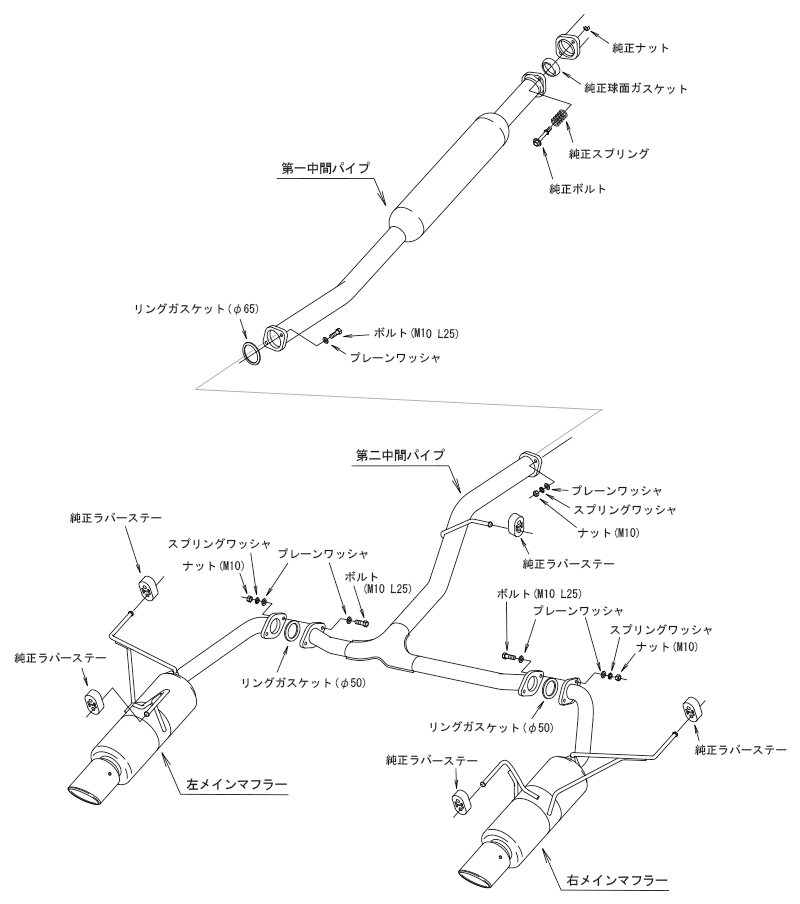

| Portion of the kit | Stock front pipe | |
| Remarks | ||
| Product Weight | ||
Remarks
Includes the center pipe. Compatible with the vehicle with STI rear under spoiler or the stock rear under diffuser. Vehicle with the stock rear bumper skirt is not confirmed. Not compatible with 5BA-VNH. *SPEC-L II: 11.5kg (51% lighter than stock.)
About HKS muffler
*1: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.
*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.
Caution: Hook, bracket, stay may be changed without prior notice.
★ Exhaust noise level at idle.
