Code No. 32016-AT129
Ensure a sports sound, weight saving, and high efficiency.
30% weight saving
It achieves approximately 30% weight saving by using thin stainless material in the pipe and silencer compared to the stock one. Stock: 5.2kg, SPEC L-II: 3.65kg
Sports sound by a less bend layout
You can enjoy a comfortable drive with a dynamic sports sound while eliminating the muffled sound by employing a less bending layout. Significantly reduces exhaust resistance by employing the straight structure in the silencer.
| Cert. No. | JQR10221048 |
|---|
| Vehicle | YARIS CROSS |
|---|---|
| Model | MXPJ10 |
| Engine | M15A-FXE(M15A-1NM) |
| Model Year | 20/08 - |
| Shape of muffler | HP
(Hi-Power SPEC-L II) |
|
|---|---|---|
| Main material | S304 | |
| Diameter of tip | 75 x 2 | |
| Diameter of center pipe | 45 - 42.7 x 2 (*1) | |
| Close noise level | Stock | 72 |
| HKS | 79 | |
| About road clearance(*2) | Clearance | 210mm |

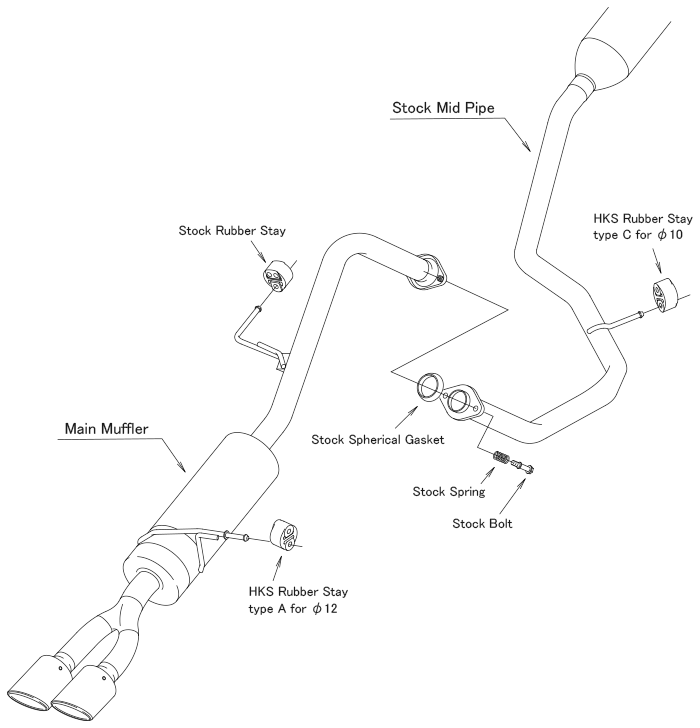

| Portion of the kit | Stock mid pipe | |
| Remarks | ||
| Product Weight | 3.65kg | |
Remarks
Compatible with the YARIS CROSS GR SPORT model made after August 2022.
Not compatible with 4WD.
The vehicle with MODELLISTA Rear Spats is not confirmed.
About HKS muffler
*1: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.
*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.
Caution: Hook, bracket, stay may be changed without prior notice.
★ Exhaust noise level at idle.
