Code No. 32018-AT065
Stylish and impressive appearance exhaust for SUV.

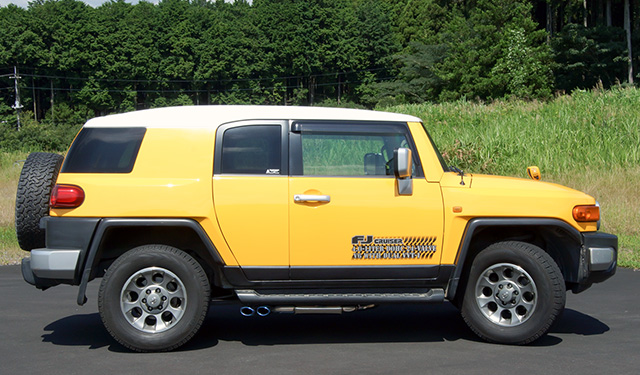

Side exhaust style
Wild looks exhaust by employing the side tip layout and the titanium tail tips. It does not disturb loading/unloading things at the rear bed thanks to the side tip layout.
Sound quality that emphasis is on the comfort
The perfect sound pressure eliminates unpleasant muffled sounds. The sound quality has been tuned so that V6 sound can be enjoyed while the engine rpm is rising.
| Cert. No. | JQR20222103 |
|---|
| Vehicle | FJ CRUISER |
|---|---|
| Model | GSJ15W |
| Engine | 1GR-FE |
| Model Year | 10/12 - 18/01 |
| Shape of muffler | N-3 (Titan)
(LEGAMAX TRAILMASTER) |
|
|---|---|---|
| Main material | S304 | |
| Diameter of tip | 100 OVAL x 2 | |
| Diameter of center pipe | 65 – 50.8 x 2 (*1) | |
| Close noise level | Stock | 84 |
| HKS | 91 | |
| About road clearance(*2) | Clearance | 222mm |
| Portion of the kit | Main Shell | |
| Remarks | ||
| Product Weight | ||
Remarks
About HKS muffler
*1: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.
*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

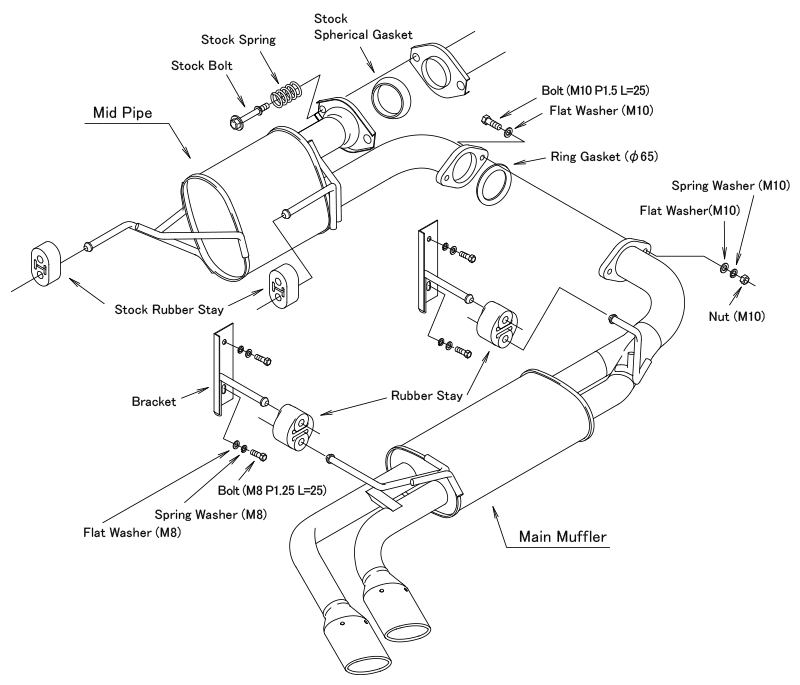

Caution: Hook, bracket, stay may be changed without prior notice.
★ Exhaust noise level at idle.
