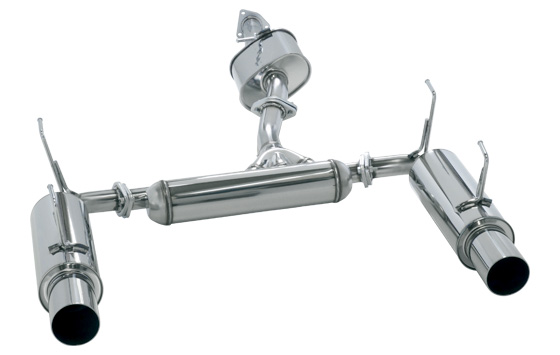

silent Hi-Power S2000 Explanation of the product Application chart

S2000 GH-,LA-,ABA-AP1
Code No. 32016-AH004

Cert. No. 03S00881

Vehicle S2000
Model AP1
Engine F20C
Model Year 99/04 - 05/10
Shape of muffler HP (TYPE-H)
(silent Hi-Power)
Main material S304(*2)
Diameter of tip 94 L&R
Diameter of center pipe 60-50 x 2(*3)
Close noise level Stock 95
HKS 94
About road clearance(*4) Clearance 135mm
Portion of the kit Y junction portion
Product Weight


Make to order item


About HKS muffler

*1: About silencer shell type of Silent Hi-Power
TYPE-S/Oval silencer for noise reduction.
TYPE-H/Round silencer for performance.

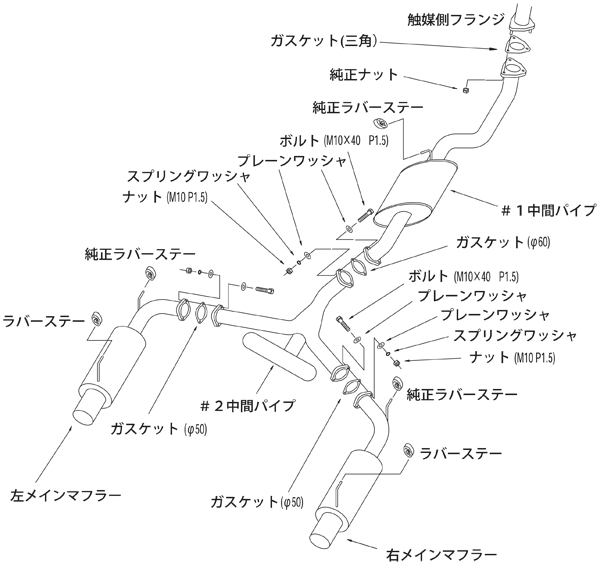

*2: Main material in the component figure.

: SUS304/High quality stainless steel.
: SUH409/Stainless steel commonly used for stock exhaust.

*3: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*4: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.

★ Exhaust noise level at idle.
