Hi-Power SPEC-L II
BRZ
BRZ DBA-, 4BA-ZC6

Code No. 32016-AT123V











Reliable performance and a distinctive design!
A sporty rear view that shines in blue!









■Features

  • Hi-Power SPEC-L II achieves weight reduction and improved exhaust efficiency. Introducing the highly anticipated model with a blue gradient inner tailpipe, “THE BLUEST EDITION”!
  • Developed with the deepest blue in mind, this special edition perfectly blends the beauty of the blue gradient with sporty design.
  • Significant weight reduction is achieved using ultra-thin stainless steel materials throughout, combined with a straight pipe structure for reduced back pressure. Performance remains top-notch, delivering a sporty sound without any muffled noise.

●Limited Quantities Available









■Structure





Cert. No. JQR40134159
Vehicle BRZ
Model ZC6
Engine FA20
Model Year 12/03 - 20/11
Shape of muffler HP
(Hi-Power SPEC-L II)
Main material S304
Diameter of tip 94 L&R
Diameter of center pipe 60.5 - 50.8 x 2 (*1)
Close noise level Stock 86
HKS 90
About road clearance(*2) Clearance 130mm
Portion of the kit Second intermediate pipe
Remarks 10.0kg
Product Weight
Remarks

Limited Quantities Available








●Appearance & Layout

  • The standard Hi-Power SPEC-L II uses a stainless steel inner tail. However, this special edition was developed with the image of "ultimate blue" in mind, featuring a uniquely crafted tail tip with a stunning blue gradient finish that combines beauty and sportiness.
  • Utilizing ultra-thin stainless steel for the pipes, silencers, and other components, we’ve achieved significant weight reduction compared to the stock exhaust. (HKS: 10.0kg / Stock: 17.5kg)
  • The sound tuning emphasizes a deep, low-frequency tone while minimizing unwanted cabin drone through a precisely engineered silent chamber; resulting in a clean, crisp exhaust note.

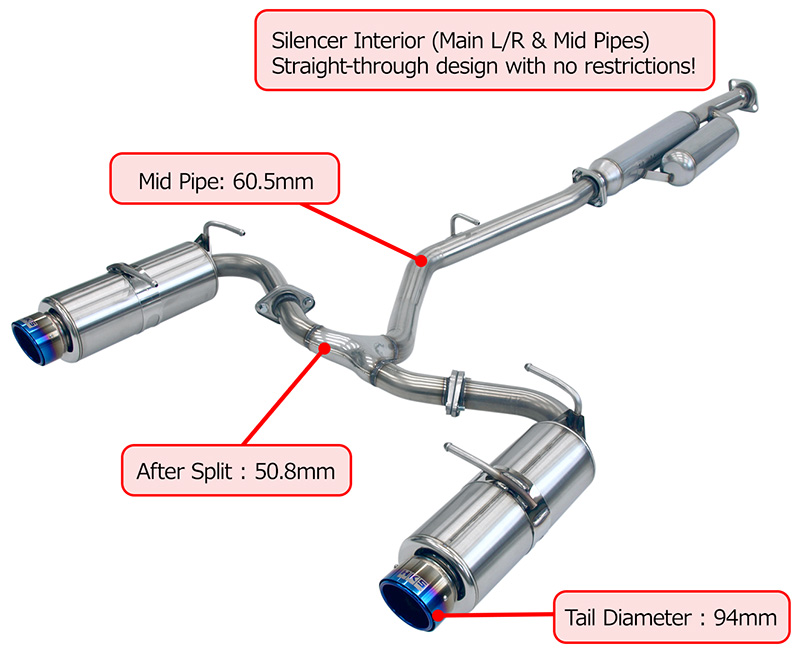

  • This system consists of four main components: Mid Pipe #1, Mid Pipe #2, and Main Pipes L & R.







●Tail Pipe Details










Introducing "THE BLUEST EDITION“; a limited model of the Hi-Power SPEC-L II, known for its lightweight design and high exhaust efficiency.
Featuring a stunning blue gradient inner tail inspired by the ultimate blue, it blends beauty with sportiness.
Enjoy sharp performance, a refined sporty sound, and a brilliantly blue exhaust tip.
Experience our finest exhaust yet.

Use alcohol or thinner to remove dirt, then gently wipe with a soft cloth.
Do not use cleaners containing abrasives, as they may damage the blue gradient finish.





Lightweight & Low Back Pressure
Ultra-thin stainless steel is used for the piping, silencers, and other components, achieving significant weight reduction compared to the stock exhaust.
A straight-through silencer design enhances exhaust flow for improved performance.

Precision-Tuned Sound
The exhaust note emphasizes a deep, low tone while eliminating unpleasant cabin drone. A silent chamber is strategically placed for targeted noise reduction.
After the split, a symmetrical left-right layout delivers a clean, well-balanced exhaust sound.







Excellent compatibility with the optional finisher cover!





  • The tail outer of the Hi-Power SPEC-L II is interchangeable, with two optional finisher covers available: Carbon Tail and Blue Tail.
  • Both options pair perfectly with the limited-edition "THE BLUEST EDITION".
    The carbon version offers a lightweight, sporty feel, while Blue brings a refined and striking aesthetic.
  • Customize your exhaust to stand out from the crowd with these exclusive finisher covers.



Carbon (34002-AK010)



Blue Tip (34002-AK016)










About HKS muffler

*1: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.

★ Exhaust noise level at idle.
