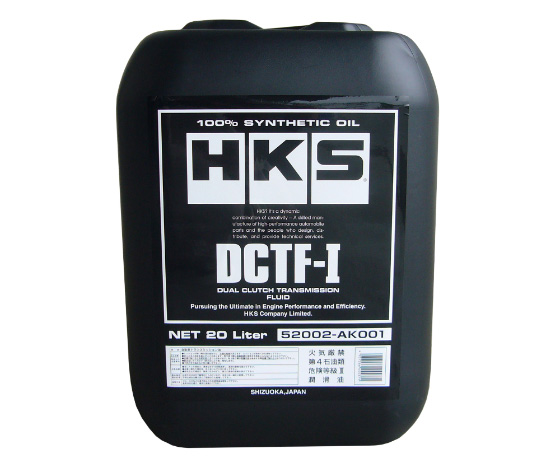

DUAL CLUTCH TRANSMISSION FLUID


Code No. 52002-AK001

*Discontinued.

DCTF-I





  • It has better low temperature flowability that let you have smooth driving experience for the everyday driving, and we have improved high temperature oil film characteristic. It has advantage on high-intensity.
    ecause the stock fluid is very expensive and difficult to obtain, we have made it cheaper and easy to get for regular change and overhaul.
  • The base oil is authentic 100% chemical synthetic oil. (Stock is half synthetic oil)
  • The extreme-pressure performance is improved to provide better abrasion resistance to the gear as compared to the stock, and the oil film stability in a high temperature area is improved by reviewing the kinematic viscosity across all the heat range. This product is compatible with Volkswagens DSG (both wet and dry type) and BMW DCT.

※DCT is a system that gear and transmission coexist in the system. Basically, it is not replaceable. However, continuous sports driving leads considerable abrasion of clutch materials that become floating components made of metal, resin, etc. in the oil, and these floating components accelerates abrasion of the gear teeth; therefore, regular replacement (every 5,000km) is recommended.

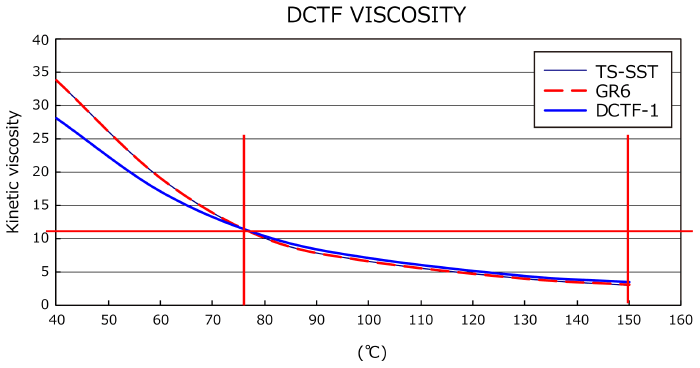

Oil Temp. 40 60 80 100 130 150 VI
EVO X (TC-SST) 33.7 19 10 6.5 3.9 2.9 146
R35 (GR6) 33.7 19 10 6.5 3.9 3 150
DCTF-I 28 17 10.3 7.03 4.3 3.4 196









■Specifications

  DCTF-I GR6 TC-SST
Density g/cm3 0.854 0.8409 0.8409
Base Oil   100% Synthetic 100% Synthetic Partial Synthetic
Color (ASTM)   Green Dark Green Pale Green
Flash Point 210 212 210
Kinematic Viscosity (40℃) cm2/S 28.00 33.76 33.12
Kinematic Viscosity (100℃) cm2/S 7.03 6.512 6.432
Viscosity Index   196 150 145
Acid Value mgKOH/g 0.7 1.26 1.27





■Comparison

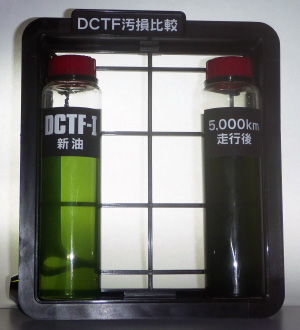

* HKS R35 test for 5,000km. Right is normal and left is DCTF. You can see clearly here normal mission is very dark.





■Required Volume

  • R35 GT-R(GR6) : 9.1L
  • EVO X(SST) : 7.1L





Product Base Oil Volume Code No. Manual Remarks
DCTF-1 100% SYNTHETIC 20L 52002-AK001 * Discontinued. For GR6/TC-SST
