GT II 7867(R) PARTS
Explanation of the product Application chart


Code No. 11014-AK020





CHRA GTII　7467 / 7867 / 8262 / 8267





Center cartriges (CHRA) for GTII 7467, 7867, 8262, and 8267 series are available as spare parts.

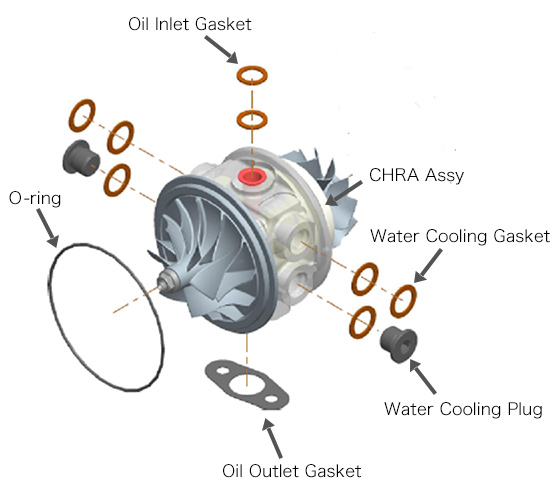

【PARTS DIAGRAM】





Product Qt. Remarks
CHRA 1
Water Cooling Plug 2
Water Cooling Gasket 6 14mm hole
Oil Outlet Gasket 1
Ｏ-ring 1
Oil Inlet Gasket 2 12mm hole





Product Code No. Manual Remarks
CHRA GT II 7867 11014-AK020 * To be discontinued.
