GTIII-RS/GTIII-SS PARTS
Explanation of the product Application chart


Code No. 11014-AK037





CHRA GTIII - RS





For GTIII-RS series, center cartridge(CHRA) is released as a repair part.

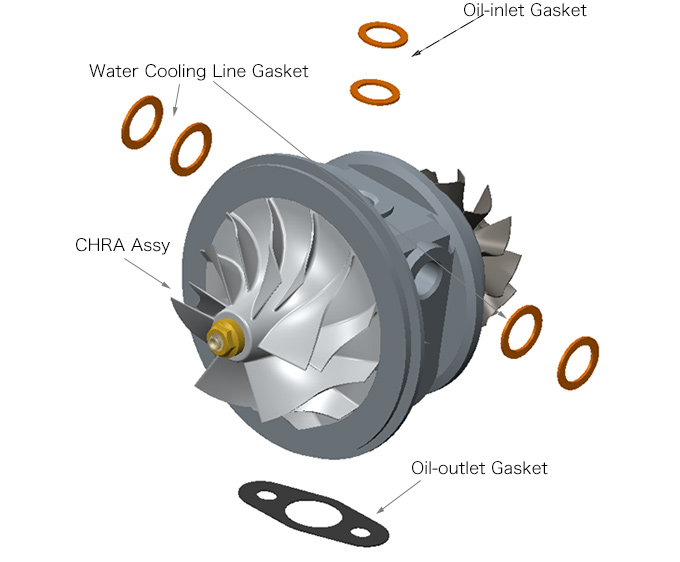

【PARTS DIAGRAM】





Product Qt. Remarks
CHRA 1
Oil Outlet Gasket 1
Water Cooling Line Gasket 4 φ14
Oil Inlet Gasket 2 φ12





Product Code No. Manual Remarks
CHRA GTIII-RS 11014-AK037 For overhaul.
