GTIII-RS/GTIII-SS PARTS
Explanation of the product Application chart


Code No. 11014-AK036





CHRA GTIII - SS





For GTIII-SS series, center cartridge(CHRA) is released as a repair part.

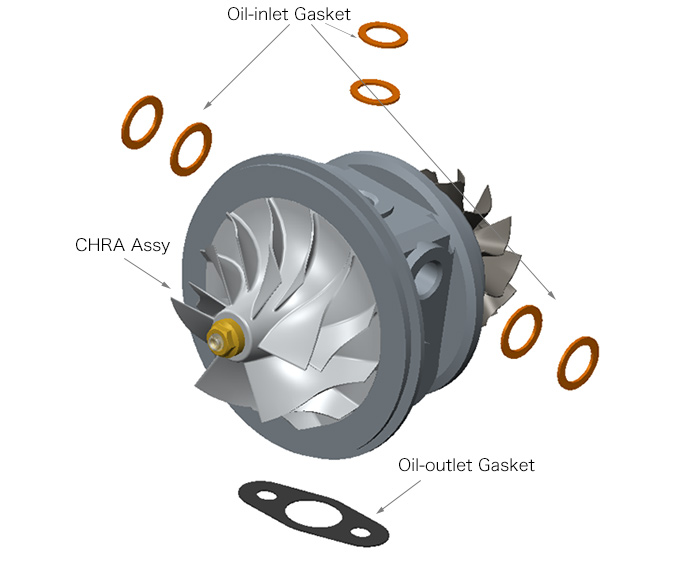

【PARTS DIAGRAM】





Product Qt. Remarks
CHRA 1
Oil Outlet Gasket 1
Oil Inlet Gasket 6 φ12
(Shared with water cooling line)





Product Code No. Manual Remarks
CHRA GTIII-SS 11014-AK036 For overhaul.
