GT SUPERCHARGER SYSTEM GTS7040 Set-up Kit for CR-Z
HKS has already released the intake and exhaust tuning parts for CR-Z. To introduce higher performance tuning to more CR-Z owners, HKS will release GT Supercharger Set-up Kit with the GTS7040 Supercharger. Installation of this set-up kit enables users to target the 300PS engine output and the 250km/h maximum speed (upgrading the engine internals and clutch may be required.)
【Feature】
- Selectable pulley diameter from 80mm to 100mm. Flexible pipes layout.
- The engine output can be increased over 300ps with upgrading the engine internals and pulley, adjusting the restrictor, etc.
【Performance comparison】

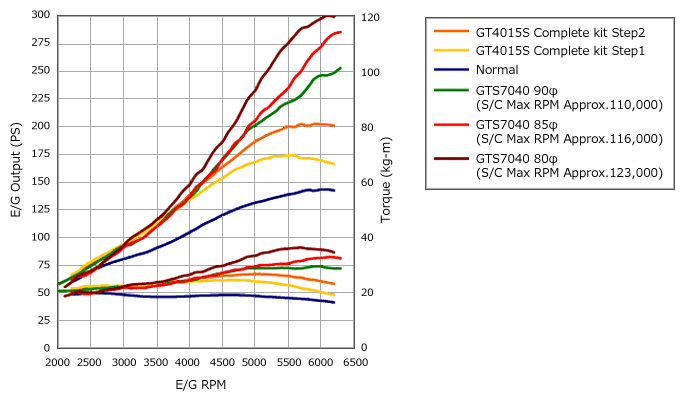

* The graph is for your reference. Various combinations are available by selecting different pulley's diameter and restrictor.
| Power | Torque | |
| GTS7040 80φ | 300.5ps/6,100rpm | 35.9kg-m/5,800rpm |
| GTS7040 85φ | 285.5ps/6,300rpm | 32.8kg-m/6,100rpm |
| GTS7040 90φ | 253.1ps/6,300rpm | 29.5kg-m/5,900rpm |
| GTS4015 Complete Kit Step2 | 202.4ps/5,700rpm | 26.7kg-m/5,000rpm |
| GTS4015 Complete Kit Step1 | 175.1ps/5,500rpm | 24.6kg-m/4,700rpm |
| Normal | 143.4ps/6,100rpm | 19.8kg-m/2,700rpm |
* These are in-house test results. Values may vary depending on measuring instruments.
【Specifications】（300ps）
| Item | Description | Part # |
| Supercharger | HKS GTS7040 φ80 *1 Max RPM:120,000rpm | |
| Exhaust | One-off Production, Straight | |
| Suspension | HKS HIPERMAX III SPL Racing Spec | |
| Suction Pipe | One-off + 150φ SPF Reloaded | |
| ECU | HKS F-CON V Pro | 42012-AK004 |
| HKS F-CON Harness (Modified HP5-10) | 42002-AH001 | |
| Electronics | HKS VAC Type CR-Z | 45002-AH001 |
| Injectors | HKS 545cc x 4 *Coupler must be replaced. | 14002-AN001 |
| Fuel Pump | ＣZ4A (EVO10) Factory Fuel Pump | |
| Intercooler | S-type AL 600 x 244 x 65 S/P Low press. loss | |
| Oil Cooler | HKS Universal #10 9-layer | 15006-AK006 |
| Piston Kit | HKS Forged Piston Kit + Connecting Rod Set | 21004-AH001 |
| Connecting Rod | ||
| Head Gasket | HKS 1.2mm Comp. Ratio 8.4 | 23009-AH002 |
| Crank Pulley | Modified Factory Pulley 6-Rib | |
| A/C Comp. Pulley | Modified Factory Pulley 6-Rib | |
| Water Pump Pulley | One-off Production | |
| Clutch | LA Clutch Single Plate | 26010-AH001 |
| Spark plug | HKS M45i x 4 | 50003-M45i |
| Engine Oil | SUPER OIL Premium 0W25 | 52001-AK107～109 |
| Tires | YOKOHAMA S.drive 215/45/R17 | |
| Wheel | YOKOHAMA ADVAN RacingRS 7.5J Off-set+48 | |
| Brake | ENDLESS Takumi Chibi 6 Caliper Kit | |
| Other | Engine Bore, Water hole-Dowel pin hole | |
| Port Polished |
*1 For safety precautions and product warranty liabilities, the maximum RPM should not exceed 110,000 rpm. HKS will not be responsible for any damage caused by use this product beyond the maximum RPM limit.
*2 The HP5-10 harness is for the F-CON iS; therefore, to use with the F-CON V Pro, modifications to the harness and F-CON V Pro are required. Refer to the modification instruction included with the harness.
【Notes for Installation】
- Suction pipe & chamber pipe must be made separately.
- Installation of the intercooler is recommended.
- Re-tuning the fuel and ignition timing is required. (To use F-CON iS, OSC is required.)
- Replace the injectors with larger capacity injectors if the target engine output is more than 170ps.
- Replace the fuel pump to use the injectors that capacity is more than 350cc. (CZ4A Factory fuel pump-150～200l/h)
- Upgrading the engine internals if the target engine output is more than 200ps, and the torque is more than 25kg/m.
- Modify the pulley's rib to 6 ribs if the target engine output is more than 200ps.
- High octane gasoline must be used.
- Replace the spark plugs with the higher heat range spark plugs. (HKS SUPER FIRE RACING M40i or higher type)
【Component】
| Setup Kit | |
| Supercharger Assy | △※1 |
| Supercharger Oil System | ○ |
| Supercharger Installation Bracket | ○ |
| Suction Pipe+ Blow off | △※2 |
| Intercooler ASSY | Not Included |
| Intercooler Pipe | Not Included |
| Brackets | Not Included |
| Fuel Control Parts (F-CON iS+OSC) | Not Included |
| Injectors | Not Included |
| Spark plugs | Not Included |
*1 Pulley is required separately.
*2 Inlet Flange (I.D.60mm) is included.
| Vehicle | Model | Engine | Model Year | Code No. | Manual | Remarks |
|---|---|---|---|---|---|---|
| CR-Z | ZF1 | LEA-MF6 | 10/02 -12/09 | 12001-AH003 |
|
* Discontinued. GTS7040 Setup Kit (GT S/C Unit + Installation Brackets) |
