GT2 SUPERCHARGER Pro Kit
CR-Z
Explanation of the product Application chart
CR-Z ZF1

Code No. 12001-AH011





GT SUPERCHARGER SYSTEM ＜GT2-7040 Pro Kit＞＜ S/C UPGRADE Kit＞
for HONDA CR-Z





“HKS Supercharger System for Honda CR-Z” has been highly praised since it was released.
The Pro Kit is redesigned. “Over 250PS” is still feasible with the upgraded engine.
An Upgrade Kit is also available for those who already installed the exiting kits.







【FEATURES】

  • HKS GT2-7040 which was originally used for the Max Speed Project is included.
  • Output of 157HP can be achieved with the stock I/J, and with the Fuel Upgrade kit and an engine control device, it can exceed 200HP.
  • Modification of the engine is not required up to 200HP.（For high load driving such as circuit driving, it is recommended to upgrade the engine parts with HKS products.)
  • Over 250PS is achievable with the upgraded engine internals.





【PERFORMANCE】

○Output Performance ...The engine output increases by approx.60ps, and torque increases by 5kg･m compared to the stock engine!!

(Test Vehicle: CR-Z(ZF1) MT)

  Power Torque
New S/C kit + Fuel up + Flash 149kw (203ps) / 6300rpm 247N･m (25.2kg･m) / 5000rpm
New S/C kit + Flash 115kw (157ps) / 5700rpm 217N･m (22.2kg･m) / 4300rpm
Normal 106kw (145ps) / 6200rpm 200N･m (20.4kg･m) / 2500rpm

* These are results of in-house test. Results may vary depending on measuring instruments.

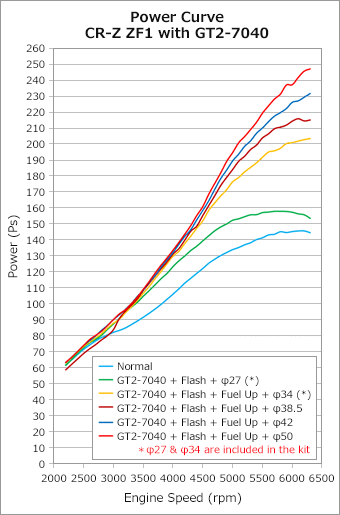

* For the power graph, please refer to the attached sheet.



○Installation of this kit has only slight effect on fuel economy!!





【Remarks】

  • The output shown in these graphs are based on our in-house tests by Dyno Jet.
  • This kit's output is adjusted by the intake restrictor.
  • During the tests, the φ38.5mm, φ42mm, and φ50mm restrictors were used besides the provided φ27mm and φ34mm restrictors to compare the results.
  • During the in-house tests, the injectors included in Fuel Upgrade Kit full duty at approximately 0.75k～0.8k boost.
    (Boost pressure may vary depending on the vehicle's specifications.)



HKS CR- ZF-1 Spec Sheet

Products Products name Remarks
Plug HKS M40i 50003-M40I
Oil HKS -5W30 Racing Pro 52001.AK07
Oil Filter Hybrid Filter 52009-AK001
Blow off HKS STD Blow off 12001-AH008
ECU HKS Flash Editor 42015-AH002
AirFlow Sensor Stock
AirFlow Adapter HKS 12001-AH008
MAP Sensor Stock
Electronics HKS AFK3 44006-AK004
I/C HKS 400×128×65 12001-AH011
S/C HKS GT2-7040 12001-AH011
S/C Pulley HKS φ90 12001-AH011
Suction HKS 150-80 Red 12001-AH011
Oil Cooler HKS Core 15006-AK006 9-layer
Attachment HKS Stype 2599-SA008
Oil Hose HKS Hose + Fitting 90°x4, Approx.1100mmx2
I/J HKS 300cc 14007-AH003
Fuel Pump Stock
Piston Stock
Con rod Stock
Head G/K Stock
CrankShaft Stock
Transmission Stock
Clutch HKS LA Clutch 26010-AH001
Suspension HKS MAX IV GT 80230-AH002
Exhaust Manifold HKS Metal Catalyzer 33005-AH003
Front Pipe HKS Metal Catalyzer 33005-AH003
Exhaust HKS Silent Hi-Power 32016-AH030





【KIT PARTS】

【GT SUPERCHARGER Pro KIT】

* All necessary installation parts are included in the kit. (An engine control part is not included.)



【FUEL UPGRADE KIT】

○Kit Parts
Large Capacity Injectors
Restrictor (φ34)

【FLASH EDITOR】

Data suitable for the performance of this kit is available.
To use Flash Editor with this kit, the initialization tool (USB) included in the kit must be used.
The following is the applicable ID as of July, 2015:
ECU ID: RTW3090M1 & RTWJ050M1

※This product was designed on a JDM vehicle and has not yet been tested in other markets.



  Pro kit Upgrade Fuel Up Flash
Supercharger Assy ○ ○ × ×
Supercharger Oil System ○ × × ×
Supercharger Bracket ○ ○ × ×
Suction Pipe ○ ○ × ×
Intercooler ASSY ○ × × ×
Intercooler Pipe + Blow off ○ × × ×
Others handware ○ × × ×
Engine Control System × × × ×
Restrictor φ27mm φ27+34mm φ34mm ×



Required Items
CAT HKS or Stock
Exhaust System HKS or Stock
Spark Plug HKS M40i or higher
Engine Oil SUPER OIL Premium 0W25 or 7.5W35





【Notes Prior to Installation】

  • Replace the spark plugs with higher heat range. (It's recommended to use HKS Super Fire Racing M40i or higher.)
  • High octane gasoline must be used.
  • Since the factory washer tank must be removed to install this kit, DENSO washer tank (160200-5070) or a similar item may be required.
  • Estimated installation time is 6 to 8 hours.
  • The noise may exceed the local legal regulation level depending on the exhaust system used.





SUPERCHARGER UPGRADE KIT

Vehicle Model Engine Model Year Code No. Price Remarks
CR-Z ZF1 LEA-MF6 10/02-12/08 12002-AH003   Compatibility with ZF2 has not been confirmed. Compatible with CVT, but for more peak power, 12001-AH007 is recommended.



FUEL UPGRADE KIT

Vehicle Model Engine Model Year Code No. Price Remarks
CR-Z ZF1 LEA-MF6 10/02-12/08 14007-AH003   Fuel Upgrade kit ZF1 for GTSC



FLASH EDITOR

Vehicle Model Engine Model Year Code No. Price Remarks
CR-Z ZF1 LEA-MF6 10/02-12/08 42015-AH002   Need Windows computer(XP or 7) and USB cable(A to mini B) for initial setting.





Vehicle Classification Model Engine Model Year S/C SIZE Code No. Manual Remarks
CR-Z ZF1 LEA-MF6 10/02 -12/09 GT2-7040 12001-AH011
