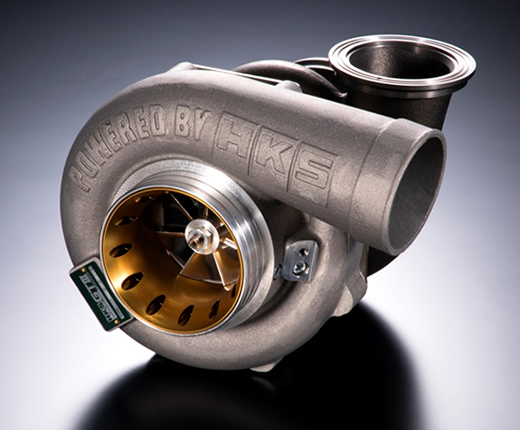

GTIII-5R TURBINE

【Variable Ported Shrou】

※Ported shroud functions depending on the bolt's position.
※When surge occurs due to the vehicle specification,ported shroud is able to prevent surging.

【Features】

• A successor model of T51 SPL BB. Compact in size, but withstandable over 800PS.
• Highly reliable MHI high performance CHRA & highly durable aluminum forged impeller are well-balanced.
• Ported shroud function is selectable using an adapter. Replacing the position of the bolt securing ported shroud is able to keep the intake air path to reduce surging.
• Impeller wheel rotation sensor compatible. (The sensor will be available separately.）　
• Easy replacement with T51R series turbine and the turbo kit using T51R.(Oil & Water inlet / outlet are designed for GTIII-5R).

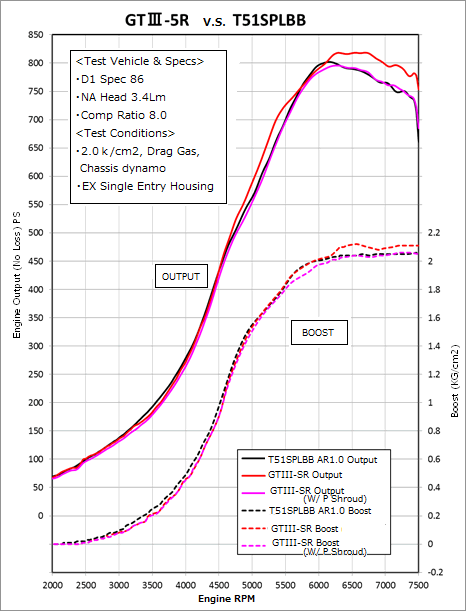

【Engine Output & Boost】

【Note】

• The graph above shows the result of in-house testing.
  The actual results may vary depending on each vehicle's specification(s).

Product	Spec	Code No.	Manual	Remarks
GTIII-5R	A/R 1.00 WG	14001-AK031		Turbo Flange: Coupling
