GTIII SERIES Explanation of the product Application chart


Code No. 14001-AK033

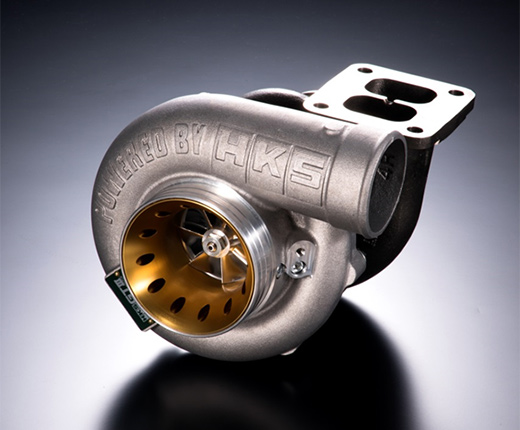

GTIII-4R TURBINE

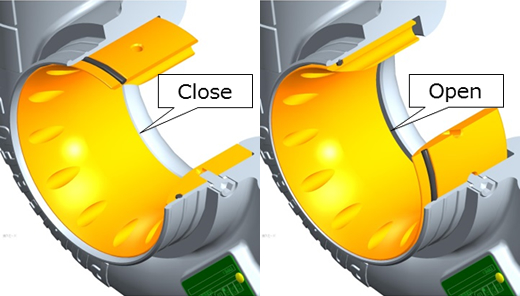

【Variable Ported Shroud 】

※Ported shroud functions depending on the bolt's position.
※When surge occurs due to the vehicle specification,ported shroud is able to prevent surging.

【Features】
  • A successor model of TO4Z. Compact in size, but withstandable over 700PS.
  • Highly reliable MHI high performance CHRA & highly durable aluminum forged impeller are well-balanced.
  • Ported shroud function is selectable using an adapter.
    Replacing the position of the bolt securing ported shroud is able to keep the intake air path to reduce surging.
  • Impeller wheel rotation sensor compatible. (The sensor will be available separately.)
  • Easy replacement with TO4Z series turbine and the turbo kit using TO4Z.
    (Oil & Water inlet / outlet are designed for GTIII-4R).

【Engine Output & Boost】





Note
  • The graph above shows the result of in-house testing.
    The actual results may vary depending on each vehicle's specification(s).
Product SPEC Code No. Price Remarks
GTIII-4R A/R0.81 WG 14001-AK033
