Code No. 14005-AZ001

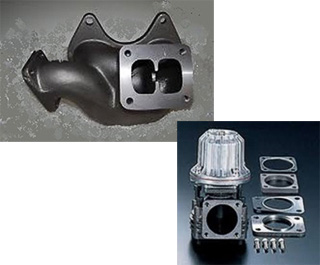

The casting manifold and wastegate from FD3S performance tuning standard HKS Full Turbine Kit are available again.




  • Installation size is the same as the conventional to compatible with the existing full turbine kit.
  • This is not just a reproduction; the port shape of the exhaust manifold internal was significantly reviewed to improve the exhaust air flow to the wastegate. The exhaust pressure reduction stabilizes the boost pressure even using with new GTIII turbines.
  • Redesigning the casting material by the latest technology improves the high temperature durability.
  • The wastegate is affordable and highly-reputed existing Special Wastegate.
  • Using with the pipes self-fabricated for the turbine increase the fun of the large capacity turbine performance.

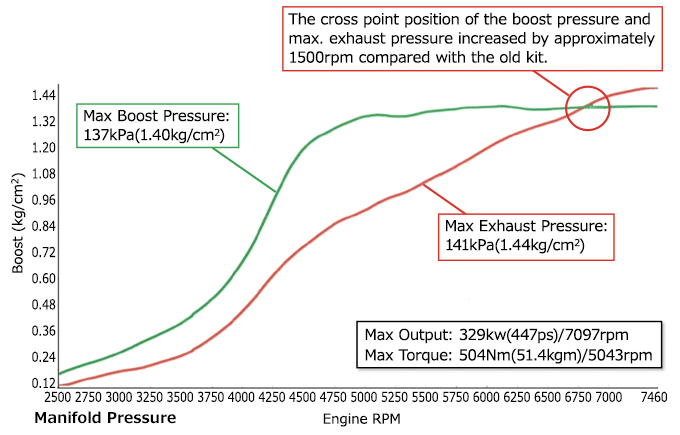

【Test Data】(In-house Test)



【Test Vehicle】

E/G:13B-REW Bridge Port
GTIII-4R A/R1.00 (Proto Type)
New Casting Exhaust Manifold




Wastegate External
Code No. 14001-AK033
Horsepower (kW) 368-537
Exhaust Housing Inlet Flange TO4 2port
Outlet Flange Coupling 99.1
A/R 0.81
Turbine Wheel Outer Dia. (mm) 74.0
Compressor Wheel Trim 53
Outer Dia. (mm) 85.0
Compressor Housing Inlet Dia. (mm) φ100
Outer Dia. (mm) φ70



Product Flange Type Code No. Manual Remarks
Special Wastegate - 14005-AZ001 Boost Setting: 78.5kPa-107.9kPa
