Parts for Bolt On Turbo 86 Explanation of the product Application chart
86 ZN6

Code No. 11999-AT001

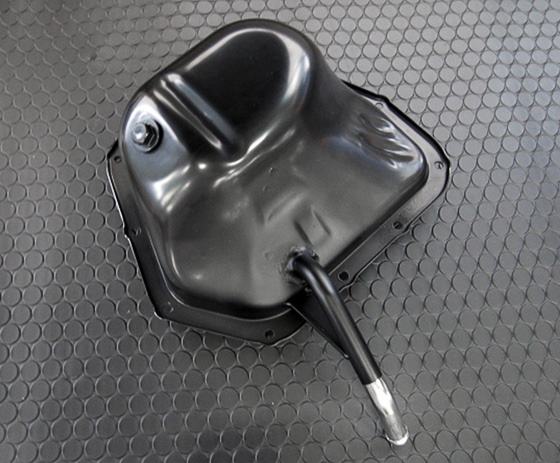

OIL PAN for Bolt On Turbo 86





Oil pan for popular BOLT ON TURBO KIT for Toyota 86






※Images provided for reference purpose only.





【Features】
  • Oil Pan for easy setup with GTIII-RS turbine 86 (11001-AT005, 11001-KT001). Stock oil pan replacement is pre-fitted with oil return pipe, ready for installation of turbo.
  • Strong welding on inside and outside reinforces the structure and additional bracket is used to improve strength to avoid risk of leakage.
  • Parts were carefully painted to enhance safety in long-term usage.





【KIT PARTS】
  • Oil pan
  • Seal ring

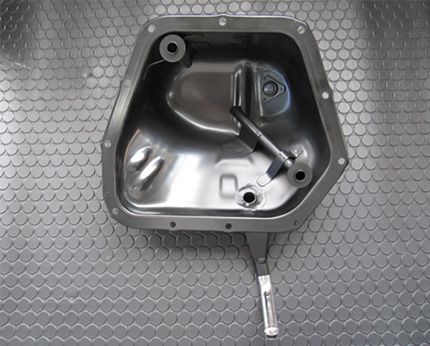

Inside view

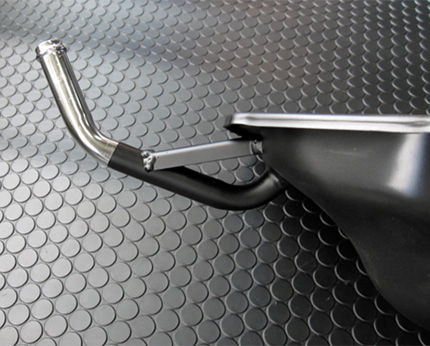

Return pipe



Vehicle Model Engine Model Year Product Code No. Price Remarks
86 ZN6 FA20 12/04- OIL PAN 11999-AT001 For BOLT ON TURBO
