Parts for Bolt On Turbo 86 Explanation of the product Application chart
86 ZN6

Code No. 14011-AT001







EXHAUST JOINT PIPE

for 86/BRZ (ZN6/ZC6)









CONCEPT and FEATURES:

HKS releases a new exhaust joint pipe that goes in the middle of primary and secondary catalytic converter.
Stock φ54 pipe is a bottleneck even in the factory exhaust system. HKS pipe size is increased up to φ60 that greatly improves exhaust efficiency and goes great with bolt on turbo kit.
Stock φ54 pipe was purposely dented in several places for preventing interference with other vehicle parts (see photo). On the other hand, HKS joint pipe is φ60 and it was made in a layout without these dents. Due to the bigger bend radius than stock, the exhaust pressure is reduced and the power is increased.

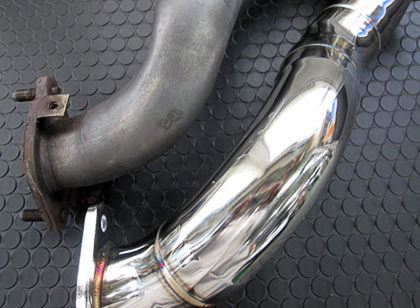

On the pictures: stock joint pipe with removed heat shield plate (above) and HKS joint pipe (below)





Cautions:

It is necessary to lift the engine for pipe replacement.
Kit includes: joint pipe, gasket, bolts and nuts required for installation.



Vehicle Model Engine Model Year Product Code No. Price Remarks
86 ZN6 FA20 16/08- EXHAUST JOINT PIPE 14011-AT001 Size: φ60
