EXTENSION KIT
SKYLINE GT-R
SKYLINE GT-R BNR34

Code No. 14018-AN005

*Discontinued.

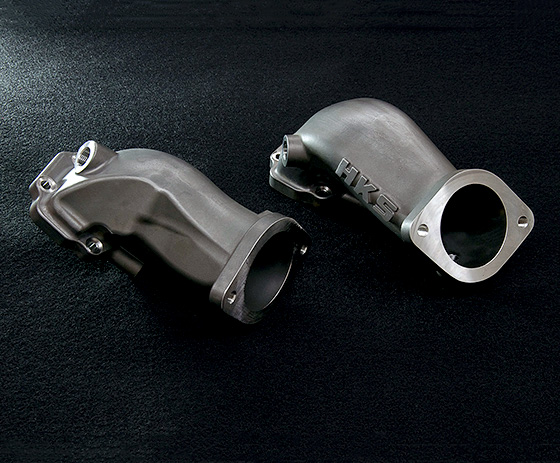

Extension kit with a good balance between performance and durability brings out the maximum potential power of the GT III turbine.









The lost-wax casting makes high-durability.

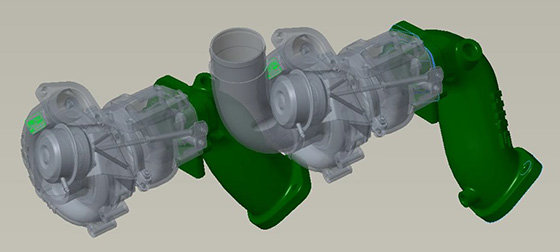

The single port inlet matched to the stock turbo of RB26.





【Features】

  • It does not only improve exhaust efficiency but also product durability.
  • The extension kit balances the two opposing sides of tuning it prevents torque decrease at low-rpm caused by expanding the airflow and reduces the secondary exhaust pressure at high-rpm.

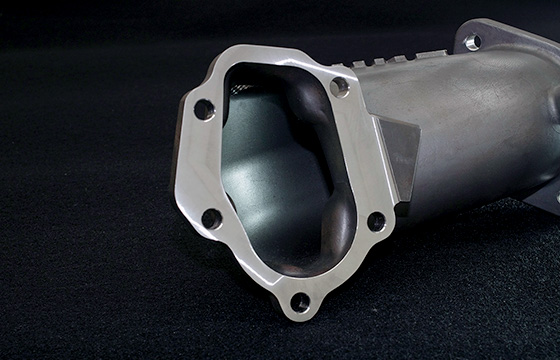

  • This extension inlet is a single port matched to the stock turbo of RB26, and the outlet diameter is φ70mm.

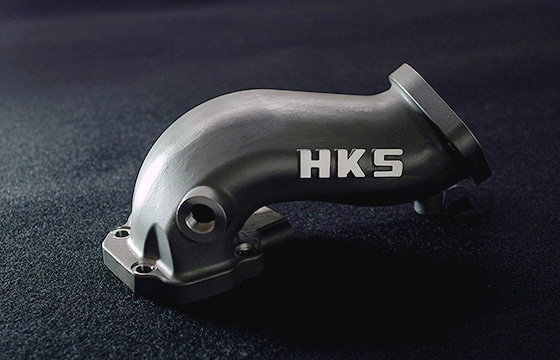

  • Durability is improved by processing heat resistant stainless steel using the lost-wax casting.

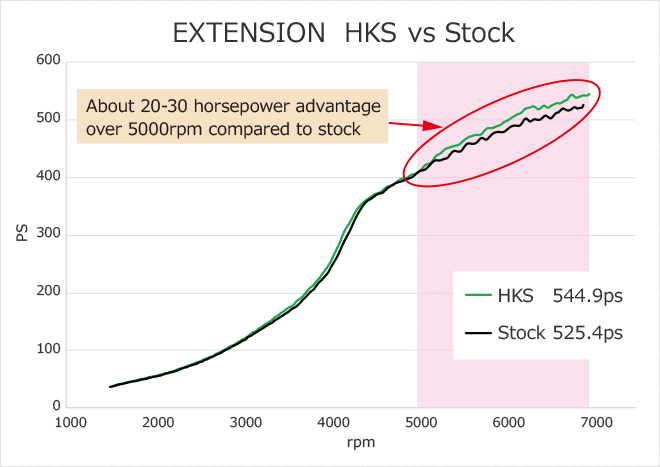

【Performance】



Note: This Output and Torque data were measured by HKS. There are some differences depends on the measuring equipment or the vehicle.





Vehicle Model Engine Model Year Pipe dia. Code No. Manual Remarks
Main Bypass
SKYLINE GT-R BNR34 RB26DETT 99/01 -02/08 14018-AN005 * Discontinued.  BNR 34 Vspec is Compatible. Compatibility is unconfirmed with stock/replacement turbos.
