GT II SPORTS TURBINE KIT
LANCER EVOLUTION X
Explanation of the product Application chart
LANCER EVOLUTION X CZ4A

GT II SPORTS TURBINE KIT

Code No. 11004-AM005

*Discontinued.

【Features】

  • Follow up version of CZ4A GT II Sports turbine kit with emphasis on mid-high rpm performance over GT II 7460KAI.
  • Like GT II 7460KAI this is a stock replacement type turbo with wheel sizes revised to aim for further power. Specification now targets beyond 450PS+
  • Whilst the specification emphasises mid-high rpm performance, ball bearing design prevents low rpm performance from being spoiled.
  • Heat resistant casting used for the turbo housing for great durability. Enlarged bypass port reduced exhaust pressure at high rpm and reduced load on the engine.
  • Can be used with existing HKS products.

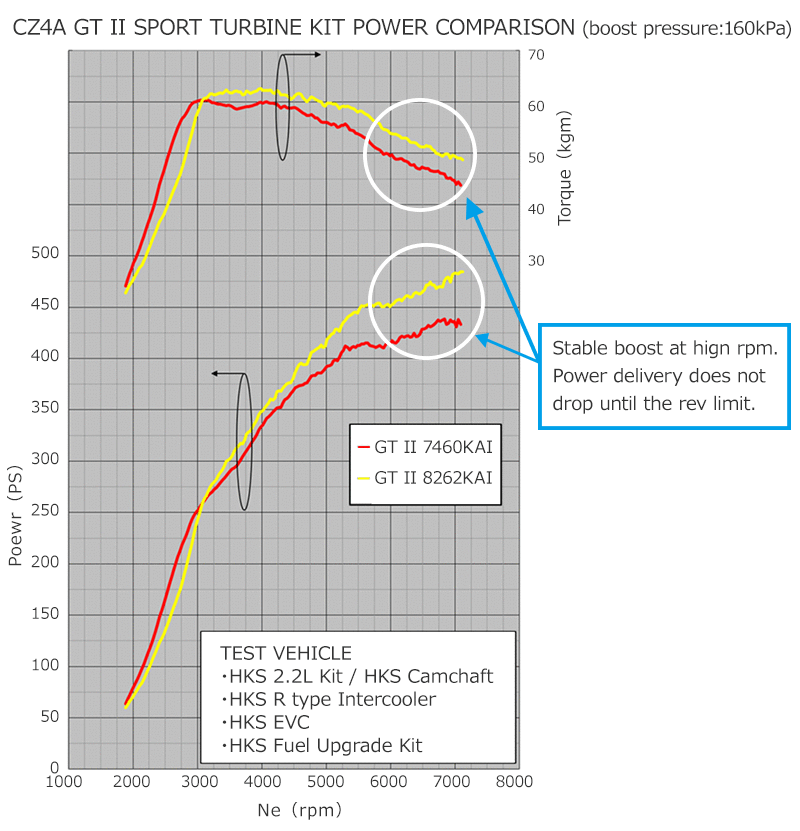

【Performance】



Performance Power Torque
HKS GTII8262 KAI STK 480ps / 7100rpm 62.0kg-m / 4000rpm
HKS GTII7460 KAI STK 438ps / 6800rpm 60.5kg-m / 3100rpm
NORMAL (BOOST UP) 360ps / 6570rpm 56.9kg-m / 2900rpm





【Kit Contents】

  • GT II 8262 KAI Turbo
  • Actuator
  • Oil Outlet Pipe
  • Oil Return Pipe
  • Gaskets and other parts for fitting





【Cautions during use】

  • Please use EVC 6 or EVC 5 (CZ4A Spec) for boost control.
  • In the event of turbo surging, please use EVC correction maps to adjust
  • Engine and fuel upgrades may be required depending on specification.
  • Do not exceed 950°C exhaust manifold gas temperature.
  • To prevent SST clutch slip, torque limitation through boost control may be necessary.





■TURBINE SPEC

Horsepower Compressor wheel Compressor housing Turbine wheel Exhaust housing
trim Inlet dia.
(mm)		 Outlet dia.
(mm)		 Inlet dia.
(mm)		 Outlet dia.
(mm)		 A/R trim Inlet dia.
(mm)		 Outlet dia.
(mm)		 inlet
flange		 outlet
flange		 A/R
490 54 60.3 82.0 for 4B11 for 4B11 8.2 87.5 62.0 58.0 for 4B11 for 4B11 0.74





Vehicle Model Engine Model Year Type Turbine Size Boost Pressure Code No. Manual Remarks
LANCER EVOLUTION X CZ4A 4B11 07/10 -15/09 GT II SPORTS TURBINE KIT GT II 8262 KAI 78.5kPa (0.8kgf/cm2) 11004-AM005 * Discontinued. with enhanced actuator
