GT SPORTS TURBINE KIT
SILVIA
Explanation of the product Application chart
SILVIA S14

GT SPORTS TURBINE KIT

Code No. 11004-AN015





Best your first replacement turbocharger for SR20DET!









■Features

  • This is a turbine that support 300ps (220kW) output in replacement.
  • This turbocharger is designed to provide a low to mid RPM range boost pick up and better usability that is not possible with the GT III-RS (350ps target).
  • This turbochargers are calibrated with a 75kPa actuator. Higher pressure settings (more than 75kPa) are available use with HKS EVC 7(45003-AK013) and actuator upgrade is not required.





■Turbocharger SPEC

  Compressor Turbine A/R Oil Line Water line
Inducer Exducer Bleads Inducer Exducer Bleads - Inlet Outlet Inlet Outlet
Stock 46.6mm 60.1mm 6+6 53.8mm 47.4mm 11 - Tapered screw
or
M12×1.25		 Stock
(M8×1.25)		 M14×1.5 M14×1.5
HKS GTIII-RS
(11004-AN016)		 55.3mm 65mm 6+6 56mm 49.1mm 12 0.6 M12×1.25 Special
 (M6×1.0)		 Special
(M14×1.5)		 Special
(M14×1.5)
HKS GT4135 49.3mm 58mm 6+6 47mm 41.2mm 11 0.6 M10×1.25 Special
 (M6×1.0)		 Special
(M12×1.25)		 Special
(M12×1.25)





■Performance

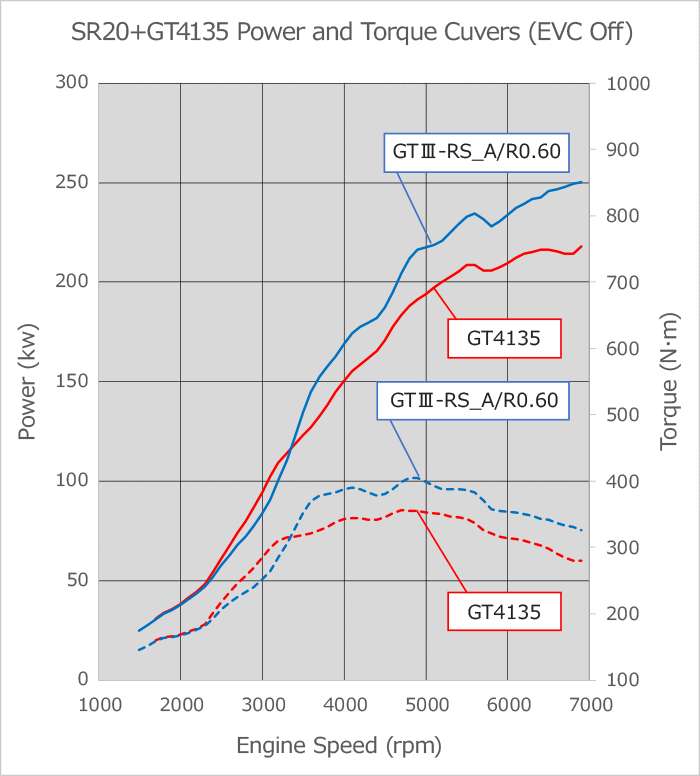

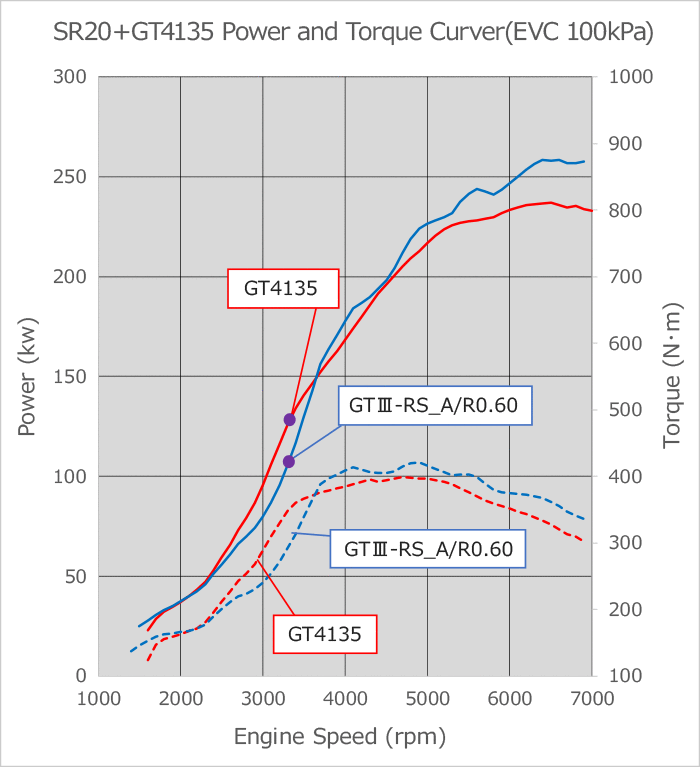

●Output Characteristics

  No Boost Controller With EVC 7
Engine SR20DET
Boost setting 75kPa (0.76kg/cm2) 100kPa (1.01kgf/cm2)
Output 216kW (294PS) / 6500rpm 237kW (322ps) / 6500rpm
Toque 355N・m(36.2kgf・m) / 4500rpm 400N･m (40.8kgf･m) /4500rpm



●Test Vehicle Spec

Turbo GT4135
Engine SR20VET Stock Piston/ Metal gasket
ECU Management F-CON Vpro3.4 / EVC7 / RB air flow sensor
Intake HKS Super Power Flow
Fuel Upgrade Injector / Nissan Stock Fuel pump for GT-R
Cooling Front Mounted Intercooler
Exhaust HKS Stainless steel manifold / HKS Metal Catalyzer
Upgrade Extension pipe/ HKS Prototype Exhaust system





■Kit include

  • GT4135 main unit with HKS special actuator
  • Water and oil piping
  • Gaskets





■Note

  • The oil return hose (part no. 15198-69F00) is required for vehicles from 2000 onwards.





Vehicle Model Engine Model Year Type Turbine Size Boost Pressure Code No. Manual Remarks
SILVIA S14 SR20DET 93/10 -98/12 GT SPORTS TURBINE KIT GT4135 75kPa(0.76kg/cm2) 11004-AN015 *The oil return hose (part no. 15198-69F00) is required for vehicles from 2000 onwards.
