BOLT ON TURBO KIT
GR86
GR86 ZN8

Code No. 11001-KT007

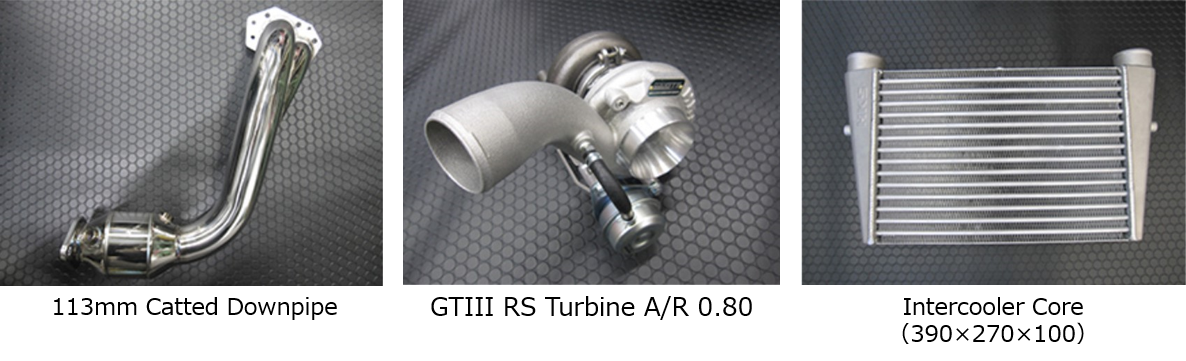

【 Kit Includes 】

HKS GTIII RS Turbine A/R 0.80 with 65kPa Internal wastegate

Exhaust manifold & 113mm catted downpipe for GR86 turbo kit

Intercooler & Piping

Super Power Flow

【Features】

The HKS GTⅢ-RS stands out as a convenient bolt-on turbocharger designed specifically for the FA24 engine, boasting a higher displacement compared to the FA20. Positioned in the middle range of the HKS turbo lineup, it delivers enhanced performance for enthusiasts seeking an upgrade.

One notable improvement lies in the enlarged bypass port diameter of the exhaust housing, contributing to superior boost pressure control. This refinement ensures optimal performance and responsiveness.

An added advantage is its compatibility with stock clutch and injectors, providing a hassle-free installation experience. For those aiming to further elevate boost levels, incorporating the EVC7 (45003-AK013) is recommended, guaranteeing even higher boost capabilities. Note that for this modification, a clutch replacement is imperative, with the HKS LA Clutch (26010-AT002) being the recommended choice.

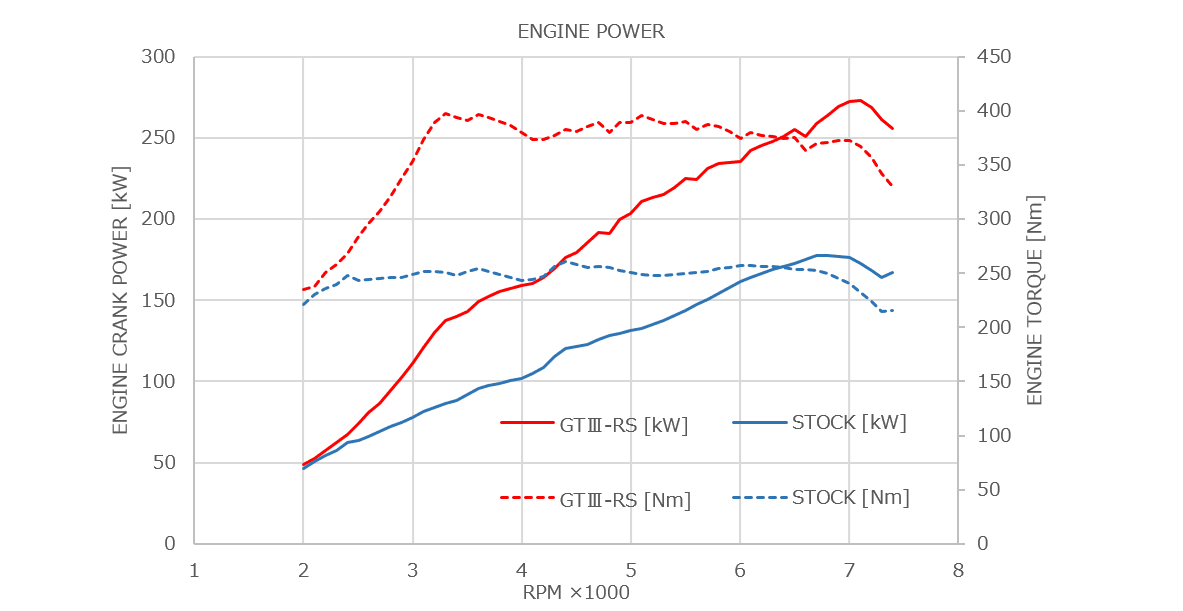

In terms of power, the HKS GTⅢ-RS unleashes a maximum output of 273kW, marking an impressive increase of +96kW over stock. The peak torque reaches 398N-m, exhibiting a substantial boost of +141Nm. (Based on JPN spec BRZ). Elevate your driving experience with the HKS GTⅢ-RS turbocharger, where power and precision seamlessly converge.

【Part Details】
