BOLT ON TURBO KIT
GR86
Explanation of the product Application chart
GR86 ZN8

Code No. 11001-AT011















 １

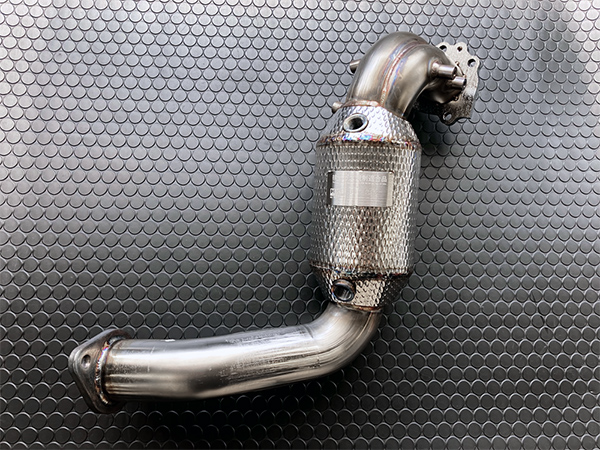

EXTENTION PIPE WITH METAL CATALYZER (D100×L100)

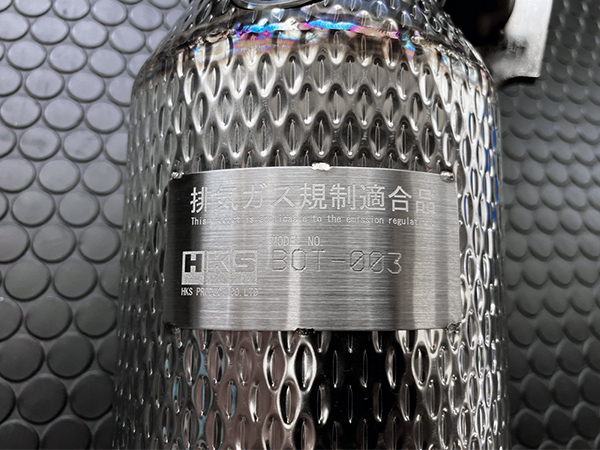

Exhaust gas test certificate included（MT only)

 2

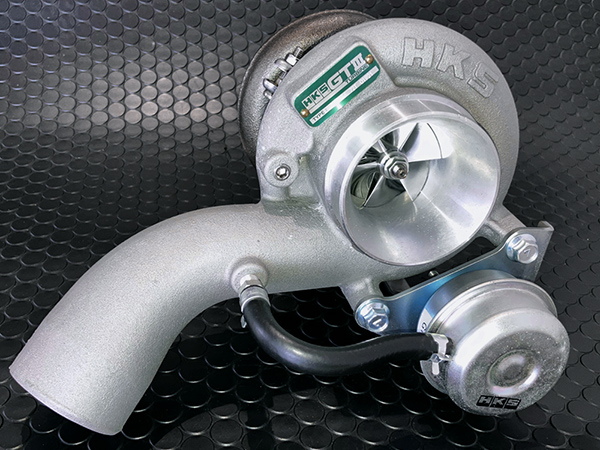

GT III-RS Turbo
(GR86・BRZ exclusive)

 3

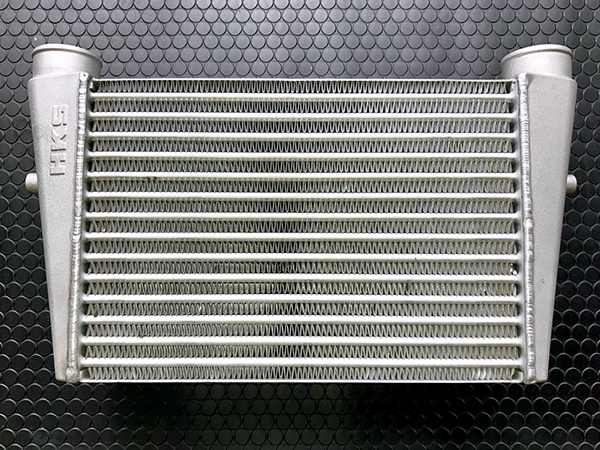

INTERCOOLER (390×270×100)





■Features

  • The HKS GT III-RS Turbo fully unlocks the FA24's capabilities.
  • Even with the stock clutch and injectors, this kit delivers an impressive 269kW (366PS) of power—an increase of 92kW (125PS) over stock—and a peak torque of 391N･m (39.9kgf･m), which is 130N･m (13.3kgf･m) higher than the stock.
  • Additionally, a custom catalytic converter has been specifically designed for the FA24 turbo kit, and it has passed the regulation exhaust gas test (for MT model).





■Performance Data



Test vehicle specifications
Model Name TOYOTA GR86(ZN8)
Engine Internals No change
Turbo Model GT III-RS
Engine Management Stock ECU＋F-CON iS
Others Stock　Clutch, Stock Injectors

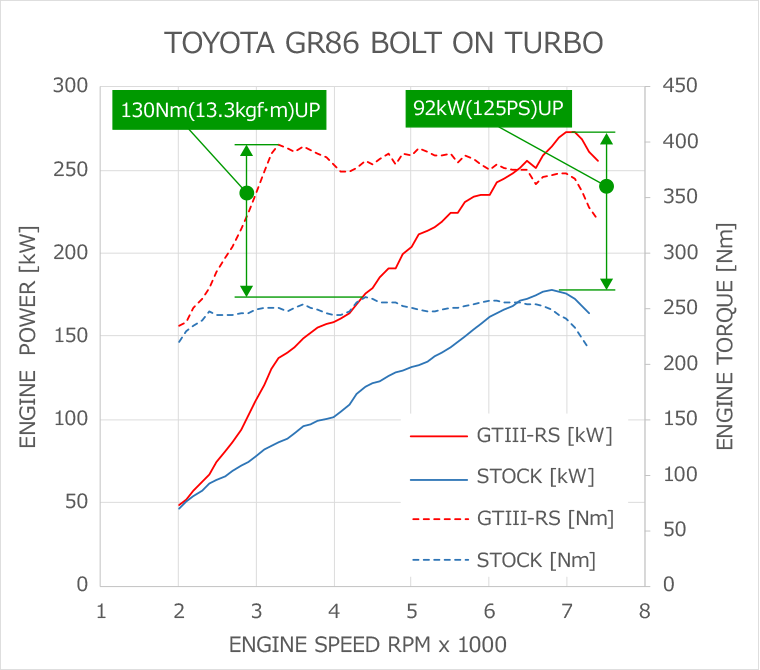

Power Output
  Stock BOT
MAX POWER 177kW (241ps)
@6800rpm		 269kW (366ps)
＠7100rpm
MAX TORQUE 261N・m (26.6kgf・m)
＠4400rpm		 391N・m (39.9kgf・m)
＠3300rpm





Vehicle Classification Model Engine Model Year Turbine Size Boost Pressure Code No. Manual Remarks
GR86 3BA- ZN8 FA24 21/10 - GTIII-RS 65kPa (0.65kgf/cm2)※ 11001-AT011 Exhaust gas test certified only for MT model
※PRE-SET WHEN USING THE SUB CONTROL SYSTEM
