TURBINE SUCTION KIT R35

Must be used in combination with GT5565_BB SPL Full Turbine Kit

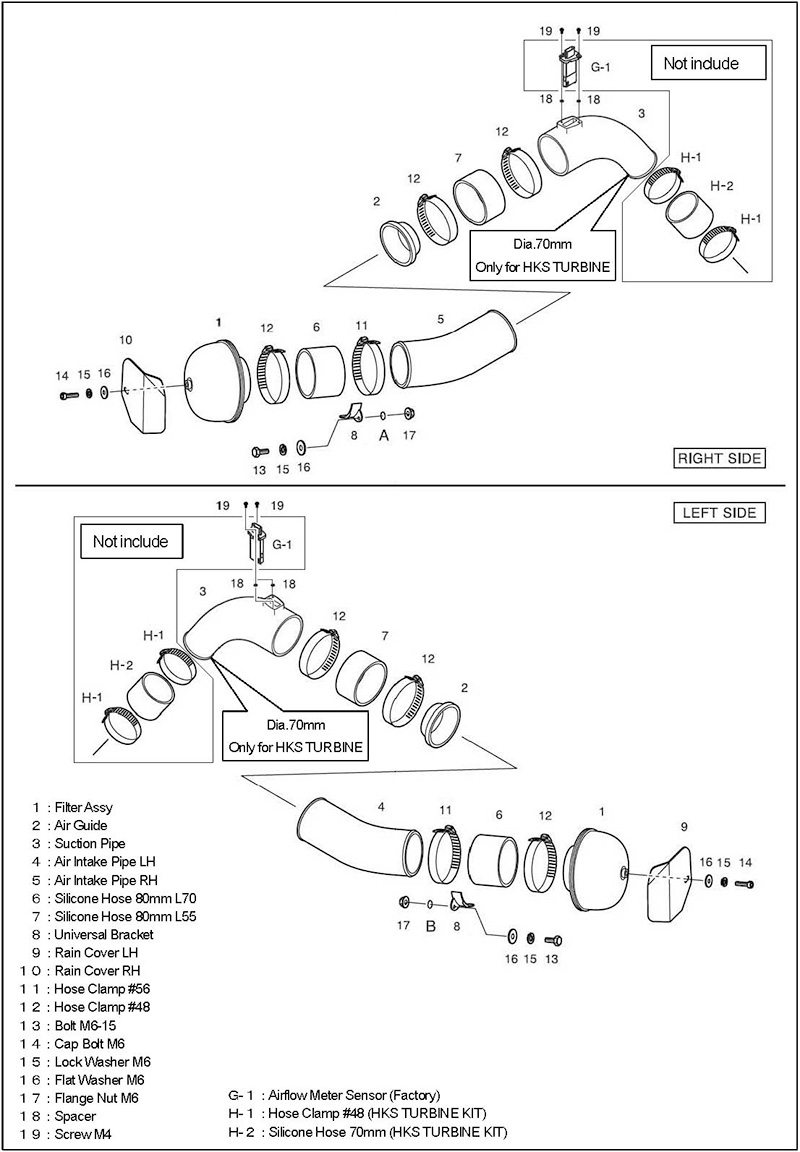

• D70mm Suction Pipe compatible with HKS Turbo Kit for R35
• Uses the included D70mm silicone hose and hose bands from HKS turbo kit
• By positioning the Power Flow inside the radiator grille, intake air temperature is stabilized
• The intake sound becomes moderately sporty, enhancing the driving experience.
• This kit includes a red, dual-layer wet-type air filter

D150mm Replacement Filter
Compatible with dual-layer wet-type filters

■Precaution

• This product must be used in combination with the FULL TURBINE KIT GT5565_BB R35 (11003-AN019).
• Engine removal and installation work is required for installation.
• Fuel pump, injectors, F-CON, EVC, and engine parts are not included in the kit.
• The factory-set boost pressure of the wastegate is approximately 90–100 kPa.
• Modification of the stock water pipe is necessary.
• Modification of the stock turbocharger heat insulator is necessary.
• This product is for competition use only; no warranty is provided for engine, transmission, or other damage caused by installation or use.
• Since this product involves removal of the catalytic converter, it does not comply with vehicle safety regulations and cannot be used on public roads.
• It is excluded from dealer warranty coverage.
• To maximize the performance of this kit, please use the Power Flow Filter (gray single-layer) included in the SPECIAL SET UP KIT (14020-AN014).
  Note: This filter is intended for race trial use only. Avoid using it on public roads.
• For general public road use, please use the included dual-layer wet filter.

■Related Products

Vehicle	Model	Engine	Model Year	Type	Turbo Kit	Turbine Size	Boost Pressure	Code No.	Manual	Remarks
GT-R	R35	VR38DETT	07/12 -25/08	TURBINE SUCTION KIT	-	-	-	14021-AN001		Specific for GT5565_BB TURBINE KIT
