TURBO TIMER

TURBO TIMER TYPE 1

Slim and separate design of simple function turbo timer

1.Easy installation by separate units design
Even for vehicles that have no space for installation of Turbo Timer, separate type can be easily installed because of the thin design.

2.The same design concept as the latest HKS electric devices
The same design concept as EVC and A/F Knock Amp. and the system layout (separate type).

3.Hand brake detection safety circuit
The hand brake detection function prevents accident while Turbo Timer is working.

FAQ

(Japanese)

Functions

  • Timer function
    Manual 1, 2 mode
  • Battery voltage indication function
    Battery voltage, Peak value indication, ON/OFF of warning function
  • RPM Indication Function
    RPM & peak value indication, Warning function
  • Time Measuring Function
    Section time measuring function
  • Stop Watch & Lap Time Function
    Stop watch & lap time measuring function
  • Battery Voltage Indication Function
    Battery voltage, Peak value indication, ON/OFF of warning function
  • Back light color
    White letters glow on black background.

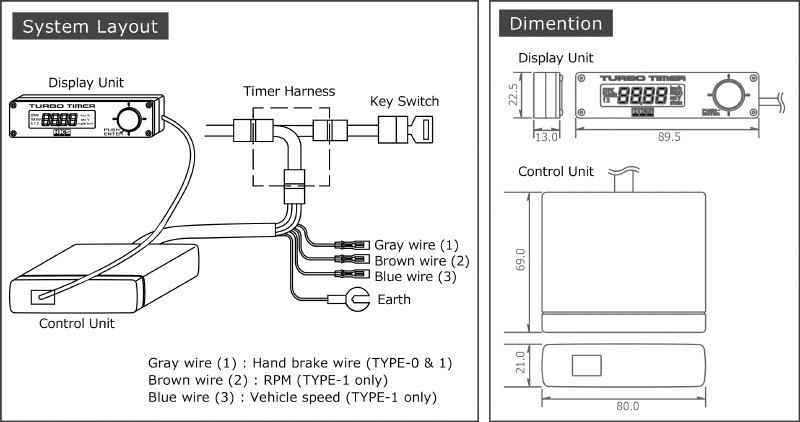

Installation

The hand brake detection function prevents accident while Turbo Timer is working.
