HIPERMAX SERIES

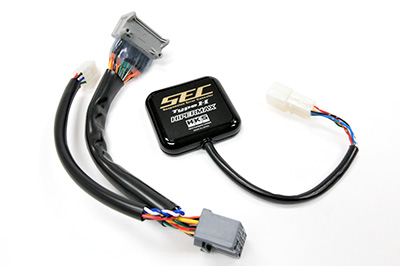

Suspension Error Canceler Type H
  • SEC Type H is a device to cancel the error from the stock variable damper system shown in the meter.
  • This device is practical to erase an error detected when a stock damper is replaced with a aftermarket damper.
  • This device is an optional part of HKS Hipermax suspension.

※NOTE

  • The error occurs in the variable damper system control unit cannot be deleted.
  • A fault diagnosis equipment may not work when SEC is installed.

Function

  • Hide the error of the variable damper system shown in the meter.

Features

  • SEC Type H is able to work even after upgrading the variable damper system control unit.
  • With the provided installation harness, no wiring modification is required to install this unit.

Installation

  • Connect the main unit between the variable damper system control unit and the vehicle harness using the SEC harness.
    Mount the main unit of SEC Type H using a double-sided tape and tie wrap.
  • Installation may require approximately 30 minutes.

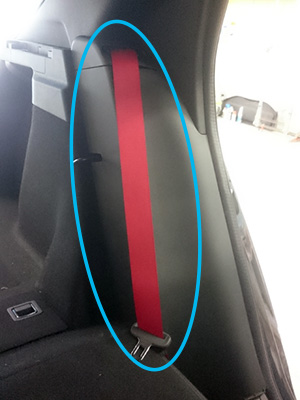

  • (1) The variable damper system control unit is located inside the interior of the back seat's left side.

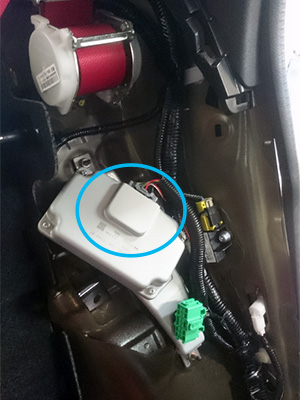

  • (2) Disconnect the connector. Install the harness between the vehicle harness and unit.

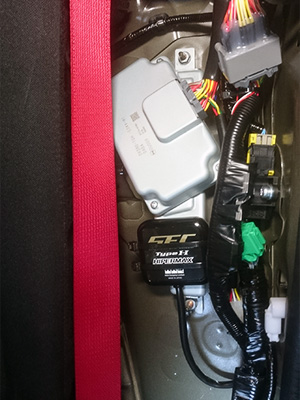

  • (3) Secure the SEC unit and harness using a double-sided tape and tie wrap.

※The above is the diagram of CIVIC Type R.
