HIPERMAX SERIES

PILLOWBALL UPPER MOUNT

Front Camber Adjustable Pillowball Upper Mount Kit for MAX IV Series for S660

Features

  • The front side of MAX IV GT/SP for S660 utilizes a special shape fixed type upper mount for a sufficient stroke amount and installation space.
  • To respond to the requests from the market, the special design front camber adjustable pillow-ball upper mount is released as an optional part.
  • This camber adjustable pillow-ball upper mount was designed to be installable without modification and vehicle height change. Also, it allows approximately -3°of negative camber at the maximum. (※1)

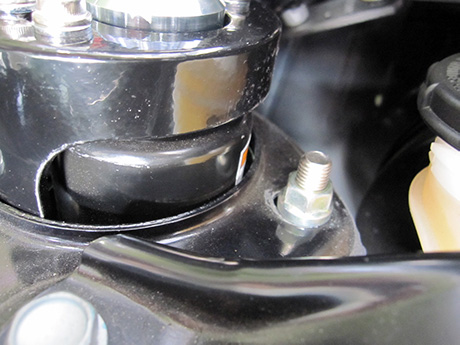

  • The unique hat-shape is designed to keep a sufficient stroke amount and durability. The maximum camber adjustable range is attained by butting off the portion of the pillow-ball amount's cylindrical part.
  • The pillow-ball is Menebea made that already proves its high reliability in Hipermax series.

※1:This negative camber angle was obtained by in-house test of Max IV SP under the factory vehicle height setting; therefore, an actual angle may be different.

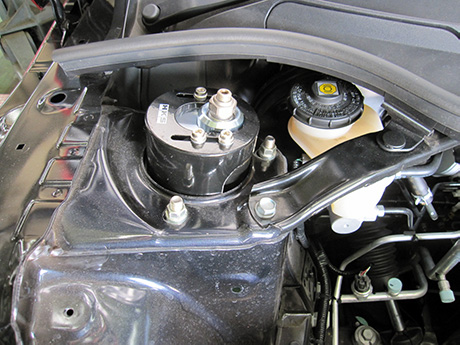

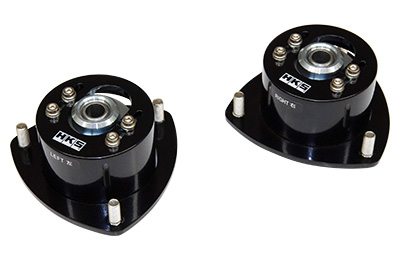

Product Photo

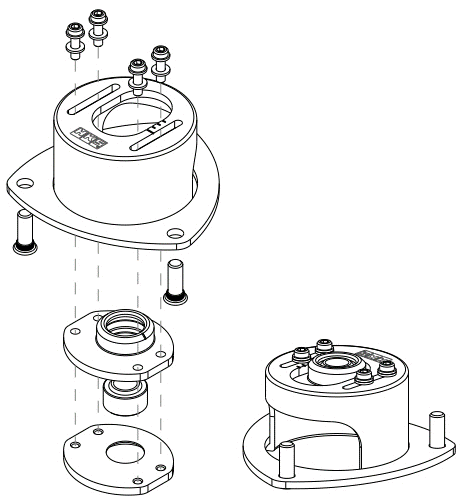

Diagram
