BOLT ON TURBO KIT
【BOLT ON TURBO KIT GT4525/GT4135 for 86/BRZ】

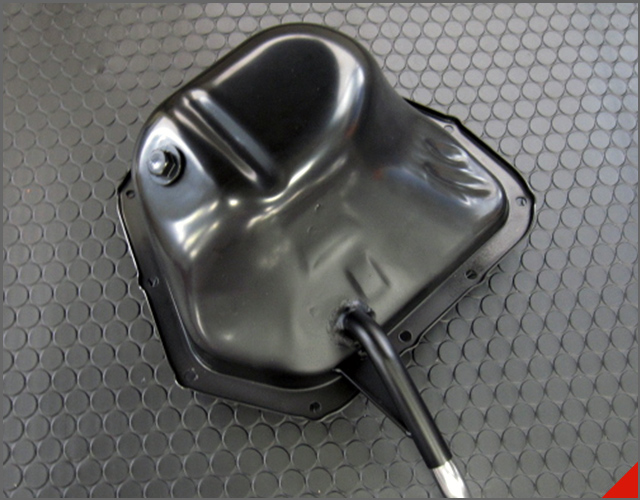

Features
- This bolt on turbo kit for 86/BRZ is compatible with stock engines and focuses on low to mid speed for track
- The turbocharger is latest available exclusively for the 86/BRZ, combining the GT4525 and GT4135 CHRAs with specially designed turbo and compressor housings.
- The layout and specifications of the Catalytic Converter are made for the late-model engine, and a newly designed heat shield obtains a certificate of emission test results.

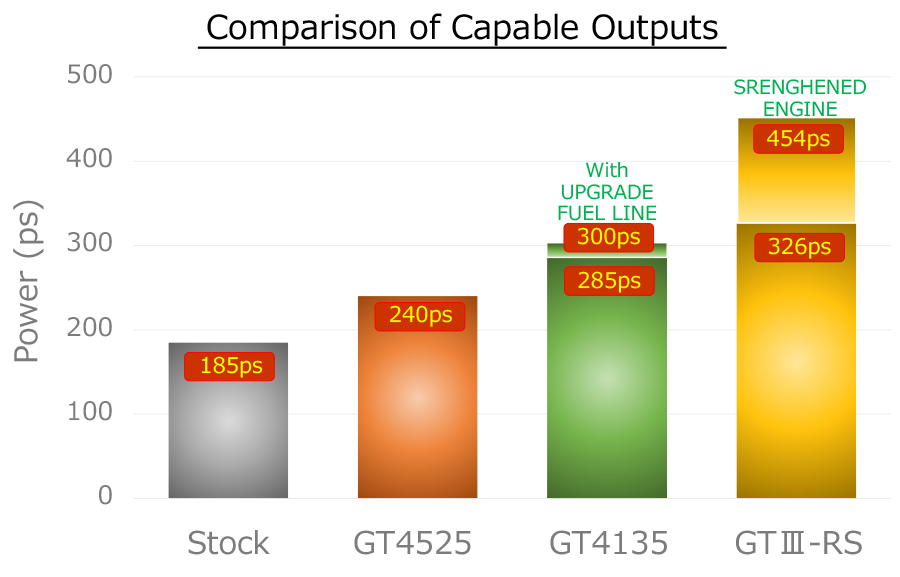

- You can enjoy 177kw (241ps) with GT4525 and 210kW (285ps) with GT4135 turbocharger with the stock engine.
- Torque output is kept within the range supported by the stock transmission, making transmission reinforcement unnecessary. (*1 *2)

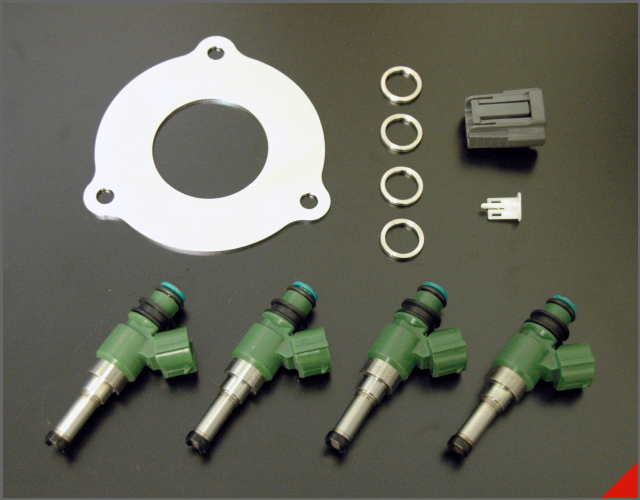

- Power output is kept within the capability of the fuel system and the sensor, enabling turbocharger without the need for modifications. (*1 *3)
(*1) The "range of compatibility" of stock parts is only a guide and does not guarantee the strength of the parts.

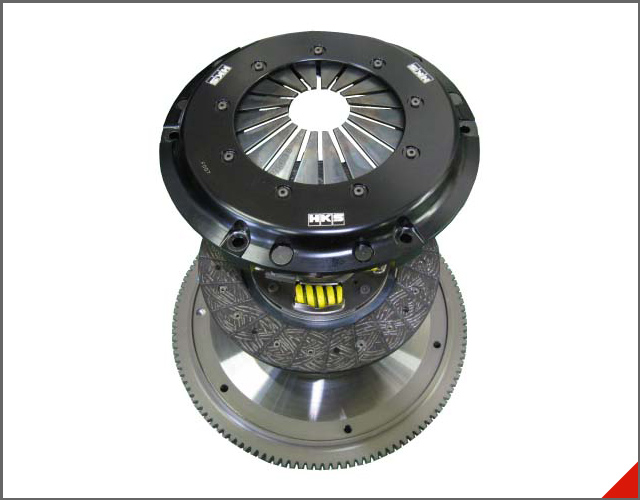

(*2) Please note clutch should be reinforced.
(*3) Please install the exclusive data for Flash Editor at HKS Power Writer contract store.

The comparison of GT4525, GT4135, GTIII-RS

- GT4525 is set up for those who enjoy more power at low rpm during street driving.
*The difference is more easily discernible in actual driving. - GT4135 is designed for those who prefer high-revving power

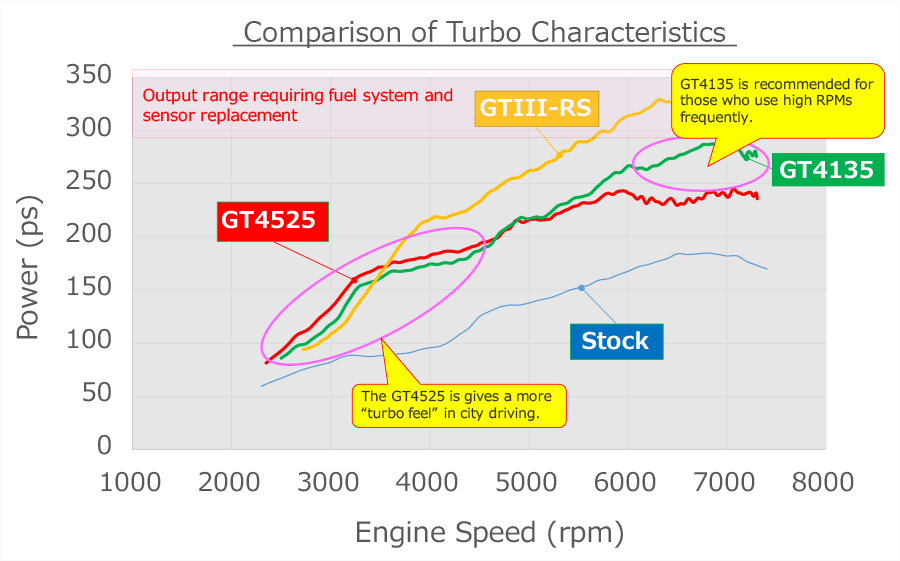

The comparison of GT4525, GT4135, GTIII-RS

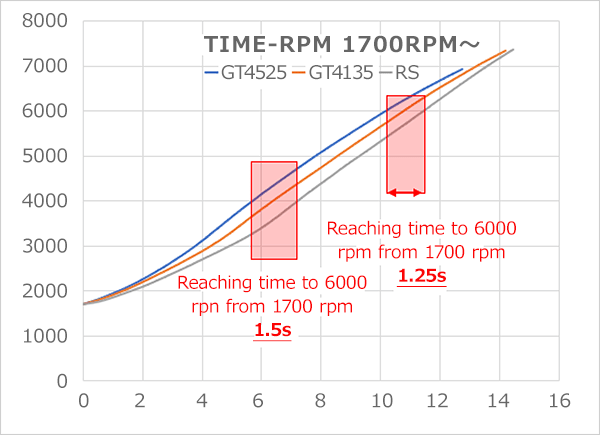

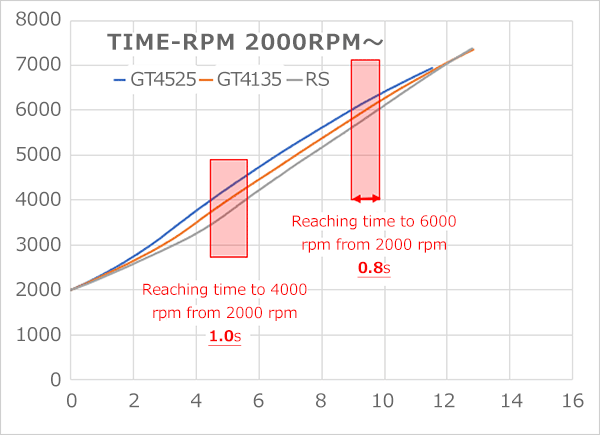

- To compare the boosting characteristics of each turbo, we compared the rpm rise time on the chassis dynamometer at the same boost pressure setting.
- When accelerating at full throttle from low rpm, the GT4525 with the lowest maximum power reaches 6000 rpm the fastest.
The example shown in the left graph, there is a 1.5 second difference when comparing the time to reach 4000 rpm.
Based on the above, GT4525 provides the more output at the low rpm while corning or street driving, which makes feel driving faster.
86/BRZ BOT Turbo Performance Sheet
Compressor | Turbine | ||||||||
---|---|---|---|---|---|---|---|---|---|
Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | Blade | A/R | |
GT4525 | 41.7mm | 56mm | 55.4 | 1.0 | 52mm | 45.6mm | 76.9 | 12 | 0.6 |
GT4135 | 49.3mm | 58mm | 72.3 | 1.0 | 47mm | 41.2mm | 77 | 11 | 0.6 |
GTIII-RS | 55.3mm | 65mm | 72.4 | 1.0 | 56mm | 49.1mm | 76.9 | 12 | 0.8 |

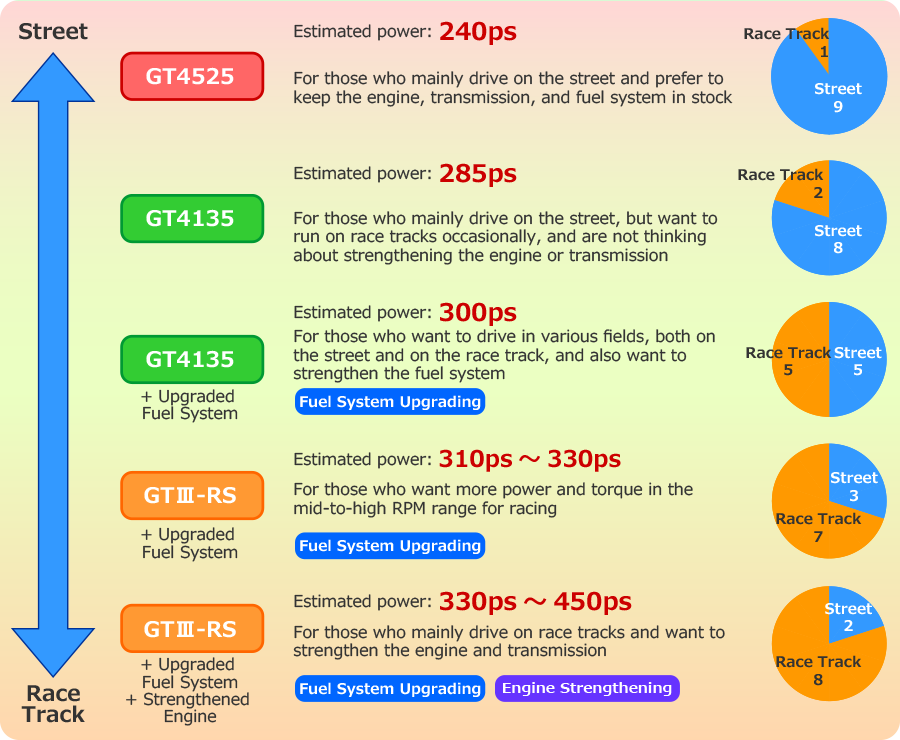

Turbo Selection
GT4525 is designed for street driving and track racing. GT4135 has the characteristic for high output at high rpm and plenty of room for step-up.
If you are interested in high power with engine enhancement, please choose GTIII-RS.

* Because GT4525 is set to use up all of the turbo capacity, increasing boost pressure does not improve maximum output.
Those who consider stepping up to the next level, please choose GT4135 or GTIII-RS.
Turbo swap after kit installation
GT4525, GT4135, and GTIII-RS each has a different center housing, resulting in a different water piping configuration and oil piping thread size.

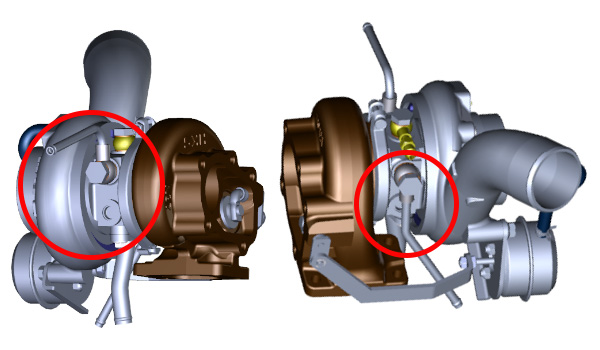

GT4525・GTIII-RS
* The piping has the same shape in appearance, but the bolt diameters and pitches are different, making it a separate part.

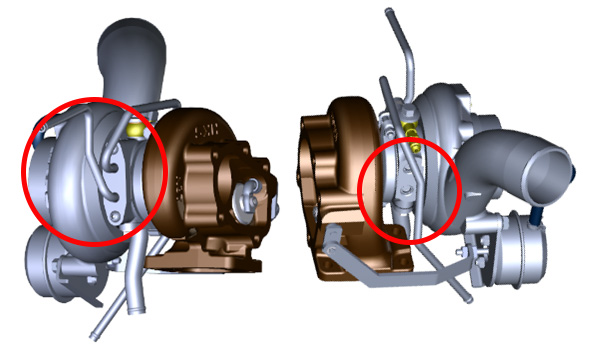

GT4135
Japanese Vehicle Emission Test Result Certificate
HKS has obtained the "Japanese Vehicle Emission Test Result Certificate" for BOLT ON TURBO specification vehicles.

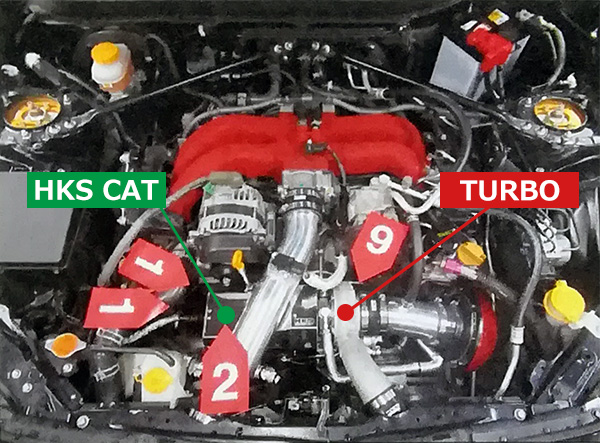

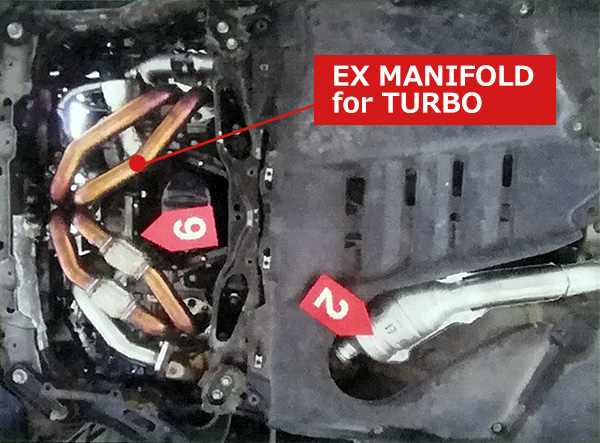

(1) O2 Sensor (2) A/F Sensor (3) Three-Way Catalytic Converter

(2) Three-Way Catalytic Converter
HKS kit configuration is as same as the images on the certificate and the actual vehicle, allowing for Japanese vehicle inspection.
To obtain emission certificate

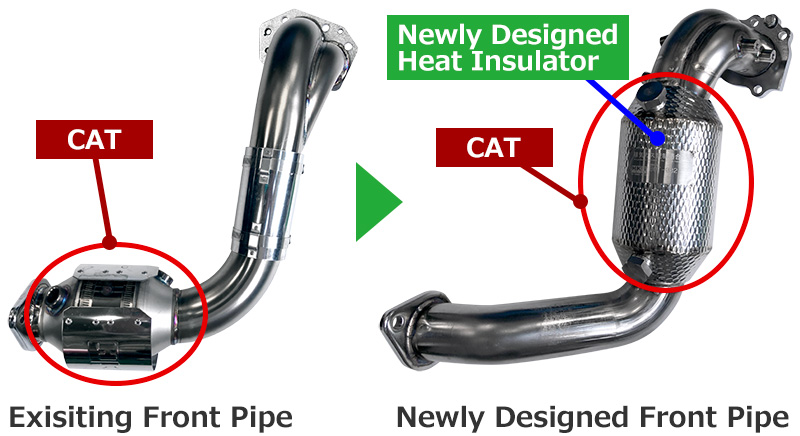

A new front pipe with Catalytic Converter has been developed to obtain Japanese emission certification which has become stricter on latest vehicle model inspection.
- The Catalytic Converter position has been moved closer to the turbo outlet to improve exhaust gas purification performance during cold startup
- In order to improve emission purification performance throughout the entire range, the number of cells is increased while maintaining power output.
- In order to move the catalyst position closer to the turbo, the catalyst outer diameter is reduced from D113 mm to D100 mm and the layout behind the radiator.

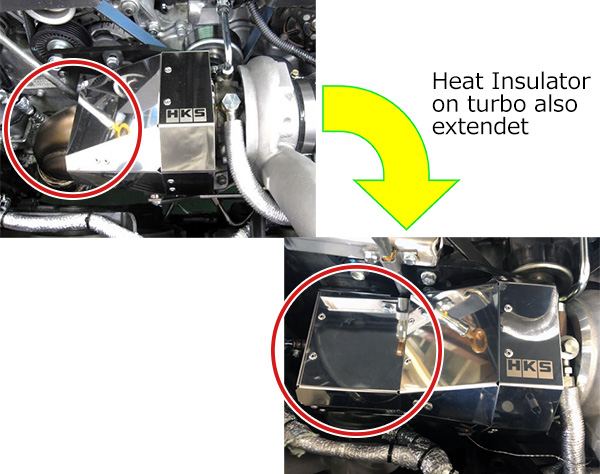

Newly designed heat shields were fabricated to avoid heat damage in the confined space.


Obtained Japanese Emission Certificates
Eary Model (DBA) | Late Model (DBA) | Late Model (4BA) | ||
---|---|---|---|---|
86 | MT | Obtained | Obtained | |
AT | Obtained | To be obtained | ||
BRZ | MT | Obtained | Obtained | |
AT | Obtained | Obtained |
