VAC Explanation of the product Application chart


Code No. 45002-AS002







VAC Type CS ZC33S

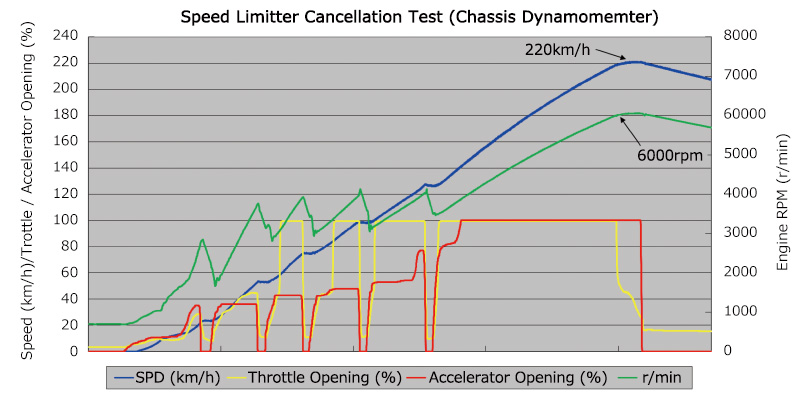

※CEL came on during testing on a chassis dynamometer.







■PRODUCT OUTLINES

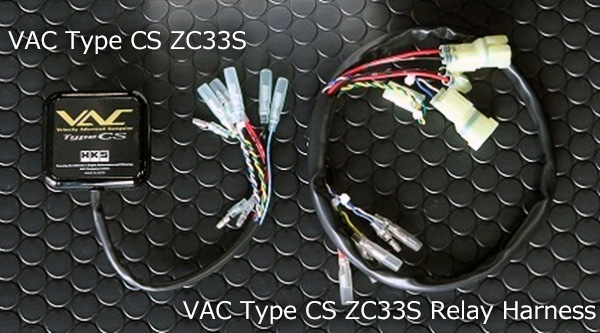

  • VAC Type CS ZC33S R is a device to cancel speed limiter of SUZUKI SWIFT SPORT ZC33S.
  • Speed limiter cancel device with a speed signal's optional speed output function.
    Connecting with a white wire of Circuit Attack Counter enables the speed indication.
  • ECM speed from OBDII does not exceed the limited speed.
    The speed meter indicates the actual speed.
  • VAC Type CS ZC33S must be removed when taking the vehicle to the dealer for inspection.





■FUNCTION
  • Speed Limiter Cancellation
  • Speed Signal Option Output



■FEATURES
  • The engine control unit can be upgraded even after the VAC was installed.
    Upgrading the engine control unit does not damage the VAC's function
  • Connecting the option speed output signal(light blue wire) to CAC or Turbo Timer enables speed indication. (Speed Pulse "4")

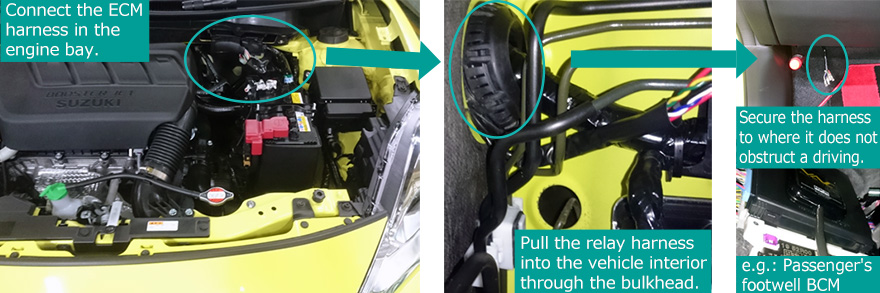

■INSTALLATION
  • Connect Engine Control Module harness in the engine bay using a relay harness.
    Secure the unit of VAC Type CS ZC33S to the vehicle interior.
  • Estimated installation time is approximately 40 minutes.





Product Code No. Price Remarks
VAC Type CS ZC33S 45002-AS002 Only for MT
