FUEL DELIVERY KIT LANCER EVOLUTION Explanation of the product Application chart
LANCER EVOLUTION CZ4A(X)

Code No. 14007-AM005







■Features
  • Injectors that diameter of delivery pipe connection portion is φ11 like HKS 1000cc (1402-RA002) and 800cc (14002-AM001) can be installed.
  • HKS Fuel Regulator can be installed.
  • With HKS Fuel Regulator, fuel pressure will be adjustable.
  • Purple alumite colored.





■Point of specification change

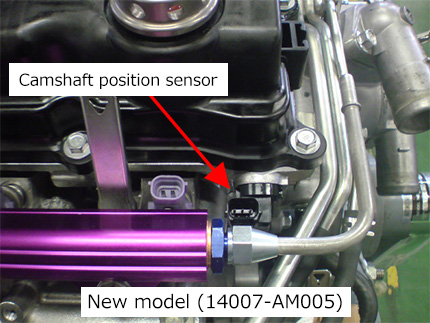

  • Due to different positions of delivery pipe connection, when 800cc injector is installed, the delivery pipe is located closer to the engine (than 1000cc injector). This will be adjusted with insulator included in the kit. (1000cc uses stock insulator).

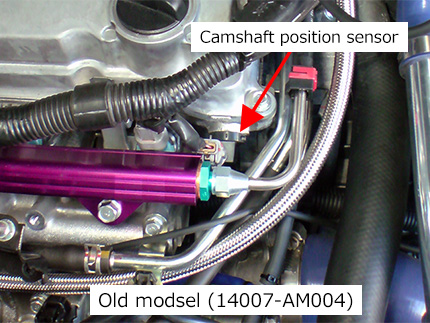

    Because of this change, the old delivery pipe contacts with camshaft position sensor.
    To prevent the problem, the new kit has shorter delivery pipe.





Camshaft position sensor





■Specification
Length L=328
Features
  • Applicable for φ11 connection injectors
  • PT1/8 fuel pressure sensor can be installed.
Components
  • Delivery pipe
  • Adapter
  • UNION AN6/M16 set
  • Copper gasket
  • Spacer
  • Insulator Injector
  • Plug
  • etc.
Remarks
  • Injector, hose, fitting, regulator, fuel pressure sensor are not included in the kit.
    Please purchase separately.



Vehicle Model Engine Model Year Diameter of hole Code No. Price Remarks
LANCER EVOLUTION CZ4A(X) 4B11(TURBO) 07/10- φ11.0 14007-AM005 * To be discontinued. Fuel Regulator(1407-RA015) required.
