MAX IV GT 20SPEC
EUNOS ROADSTER
EUNOS ROADSTER NA6CE

MAX IV GT 20SPEC

Code No. 80230-AZ008A

*Discontinued.

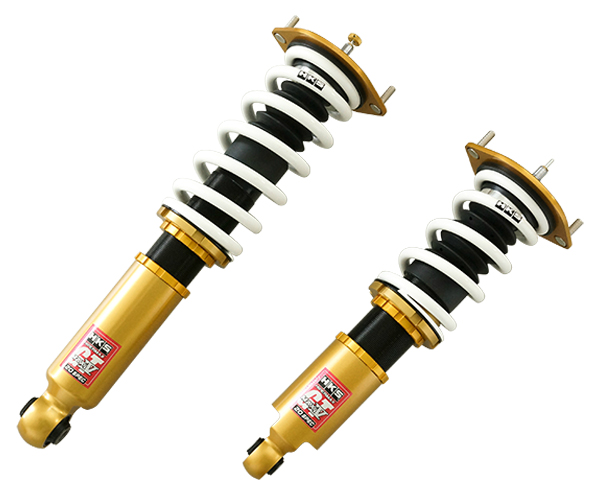

An updated MAX IV GT with improved handling and comfort, an ulimate street suspension.





▲The above photo is an item for NA6CE.





Application

Engine B6-ZE
Model Year 89/09 - 98/01
Remarks

Specification

  FRONT REAR
Damping force adjustment 30 steps 30 steps
Base valve - -
Height adjustable lower bracket
Upper mount Rubber Rubber
Inverted/Normal type Normal Normal
Damper/Spring layout Coilover Coilover
Spring rate change at factory Impossible Impossible
Damping force adjustment with wire - 左のみ
Helper spring
(Spring rate N/mm)
- -
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3
Drivable range
High - Low *4
FRONT Ride height *1 612 624 ~ 573 624 ~ 573
Against stock -11 1 ~ -50 1 ~ -50
REAR Ride height *1 616 639 ~ 580 639 ~ 580
Against stock -23 0 ~ -59 0 ~ -59

*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information

Spring of Full Kit

  F R
Spring rate N/mm(kgf/mm) 59 ( 6.0 ) 69 ( 7.0 )
Free height (mm) 220 150
Spring type Straight Barrel type Straight
Recommended range to change spring rate N/mm(kgf/mm) - -

Specification of damper

  F R
Damping force (Rebound/Damping)N* 432 / 392 284 / 407
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 30 / 57 37 / 35

* The value of the damping force is at piston speed of 0.1m/sec.

Setting data

  F R
Default Test Drivable limit
High *
Drivable limit
Low *
Default Test Drivable limit
High *
Drivable limit
Low *
Length of
case (mm)
304 312 301 236 253 210
Spring
Set length(mm)
198 198 221 151 151 151
Length to ride hight
adjuster (mm)
30 38 4 40 57 14
Lever ratio 1.49 1.38

* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information

  F R
Vehicle weight kg 529  (540) 484  (480)
Tire size (Air pressure) kPa 195 / 50 - 15 ( 200 ) 195 / 50 - 15 ( 200 )
Wheel size 6.0 JJ × 15 inset 45 6.0 JJ × 15 inset 45
Alignment
(Toe/Camber)
Test data in 0 mm / -1°50' in 3 mm / -2°15'
Standard value in 2 ± 2 mm / 0°25' ± 0°45' in 2 ± 2 mm / -0°45' ± 0°30'

* Test data at HKS.

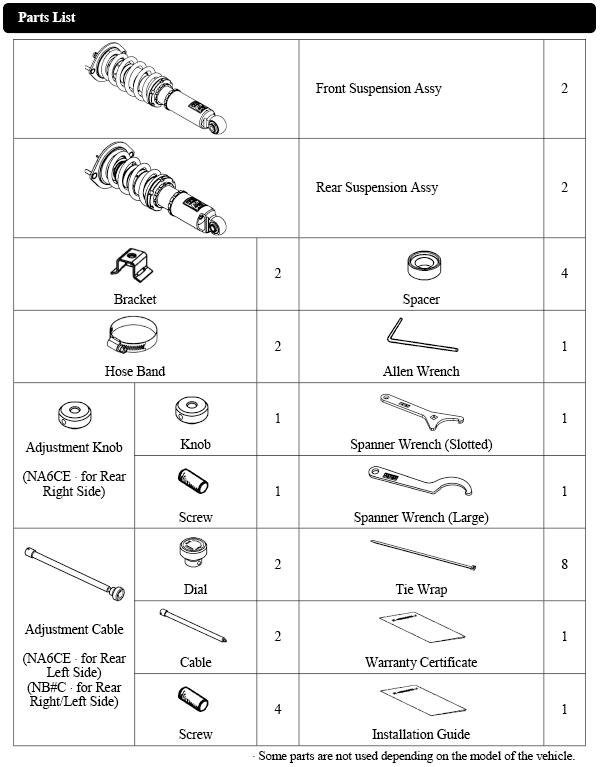

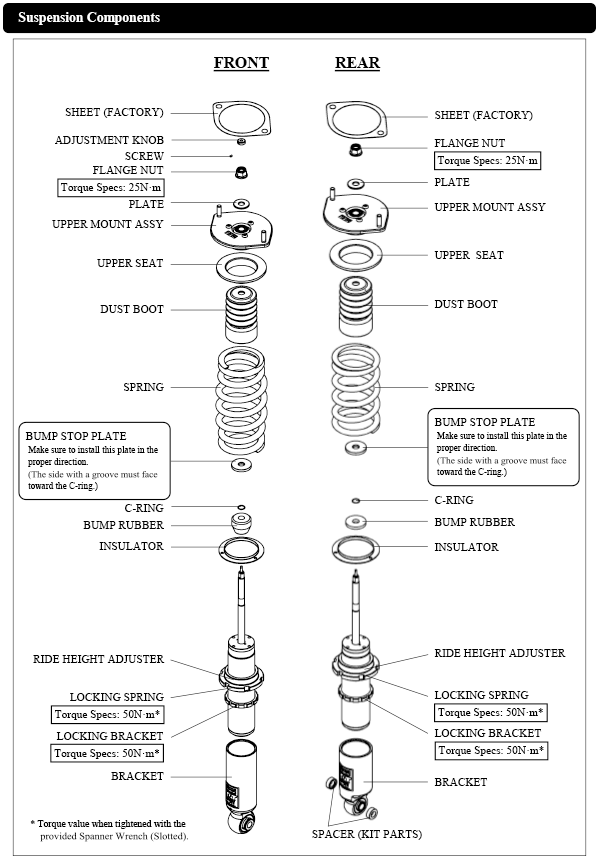

Parts List  * It may be changed without prior notice.




Point

Handling performance has been improved by applying the compression damping force as much as the body rigidity allows.
By adding the compression damping force, unnecessary extension damping force can be removed. The suspension is able to move more flexibly and unnecessary rolls are suppressed.
With flexible suspension movement, you can drive on any type of road in a comfortable manner.
Because the suspension is flexible and does not stretch, the setting is to maximize the grip of the tire.
Insulators are adopted as standard, with consideration for ease of adjustment and noise countermeasures.
