HIPERMAX SERIES

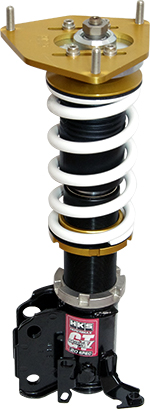

MAX IV GT 20 SPEC

  • Single Tube
  • 30 step
    adjustable daming
  • shock-body
    length adjustable
  • Special Oil
  • PNE Coating
  • M4P
  • changeable
    port system
  • Preload
    Valve System
  • aluminium bracket
    *2
  • strengthen ruber
    upper mounts *2
  • inverted
    (strut type only)
  • overhaul available

*1 Normal type only *2 Not for all vehicle

An updated MAX IV GT with improved handling and comfort, an ulimate street suspension.

Based on MAX IV GT and updated with latest technologies. Street suspension created with consideration of comfort and stability. A suspension kit that is exciting and sporty, yet balanced and suitable for a daily driver.

Features of MAX IV GT 20 SPEC
  • single tube
  • 30 step
    adjustable daming
  • shock-body
    length adjustable
  • special oil
  • PNE coating
  • M4P
  • changeable
    port system
  • Preload
    Valve System
  • aluminium bracket
    *2
  • strengthen ruber
    upper mounts *2
  • inverted
    (strut type only)
  • overhaul available

*1 Normal type only *2 Not for all vehicle

HKS suspension is single tube! Application Chart Inventory

Overhaul
Single Tube Damper Design
Mono tube dampers allow for more accurate and stable control and adjustment of dampening. Lower ride height and centre of gravity gives a more stable ride.
Dust Boot
Protect the shaft from the flying stones.
PNE Coating
Using this special surface coating provides 5 times better durability over standard galvanising. This prevents build-up around the threads of the adjustment areas allowing for easier height adjustment.
Preload Valve System
An updated preload valve allows a responsive damper movement at low speed and appropiately cuts off excessive high speed damping. Reduction of unnecessary movement provides a flat driving feel.
New Design Needle
Newly designed needle has been used to revise the very low speed and middle and high speed dampening which is key to a comfort ride.
Reduction of Unsprung Weight
In order to reduce unsprung weight, bracket, ride height adjusters and lock nuts are made from aluminium. (Not for all vehicles)
30 Step Damping Force Adjustment
30 levels of dampening adjustment allow fine tune adjustment for street or circuit.
