MAX IV GT 20SPEC
ROADSTER
ROADSTER NB8C

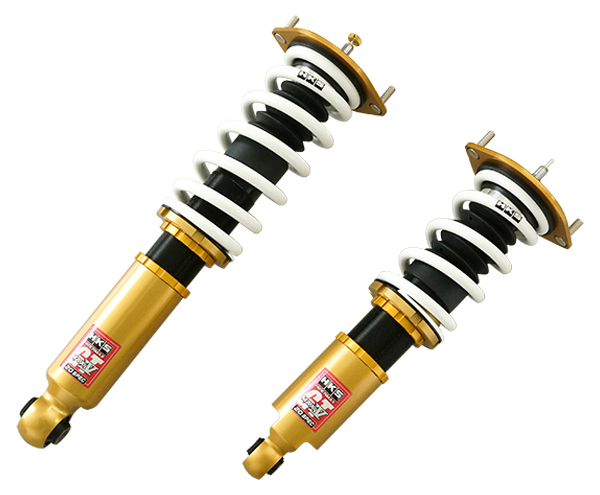

MAX IV GT 20SPEC

Code No. 80230-AZ008A

*Discontinued.

An updated MAX IV GT with improved handling and comfort, an ulimate street suspension.

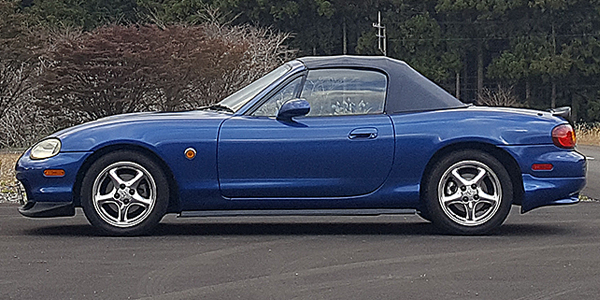

▲The above photo is an item for NB8C.





Application

Engine BP-ZE
Model Year 98/01 - 05/08
Remarks

Specification

  FRONT REAR
Damping force adjustment 30 steps 30 steps
Base valve - -
Height adjustable lower bracket
Upper mount Rubber Rubber
Inverted/Normal type Normal Normal
Damper/Spring layout Coilover Coilover
Spring rate change at factory Impossible Impossible
Damping force adjustment with wire -
Helper spring
(Spring rate N/mm)
- -
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3
Drivable range
High - Low *4
FRONT Ride height *1 597 609 ~ 558 609 ~ 563
Against stock -11 1 ~ -50 1 ~ -45
REAR Ride height *1 607 622 ~ 571 622 ~ 571
Against stock -14 1 ~ -50 1 ~ -50

*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information

Spring of Full Kit

  F R
Spring rate N/mm(kgf/mm) 59 ( 6.0 ) 69 ( 7.0 )
Free height (mm) 220 150
Spring type Straight Barrel type Straight
Recommended range to change spring rate N/mm(kgf/mm) - -

Specification of damper

  F R
Damping force (Rebound/Damping)N* 432 / 392 284 / 407
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 34 / 53 42 / 30

* The value of the damping force is at piston speed of 0.1m/sec.

Setting data

  F R
Default Test Drivable limit
High *
Drivable limit
Low *
Default Test Drivable limit
High *
Drivable limit
Low *
Length of
case (mm)
304 312 304 236 247 210
Spring
Set length(mm)
198 198 221 151 151 151
Length to ride hight
adjuster (mm)
30 38 7 40 51 14
Lever ratio 1.49 1.38

* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information

  F R
Vehicle weight kg 557  (550) 515  (480)
Tire size (Air pressure) kPa 195 / 50 - 15 ( 180 ) 195 / 50 - 15 ( 180 )
Wheel size 6.0 JJ × 15 inset 40 6.0 JJ × 15 inset 40
Alignment
(Toe/Camber)
Test data in 0 mm / -1°50' in 2 mm / -2°50'
Standard value in 1 ± 1 mm / 0°02' ± 0°45' in 1 ± 1 mm / -0°42' ± 0°45'

* Test data at HKS.


Parts List  * It may be changed without prior notice.




Point

Handling performance has been improved by applying the compression damping force as much as the body rigidity allows.
By adding the compression damping force, unnecessary extension damping force can be removed. The suspension is able to move more flexibly and unnecessary rolls are suppressed.
With flexible suspension movement, you can drive on any type of road in a comfortable manner.
Because the suspension is flexible and does not stretch, the setting is to maximize the grip of the tire.
Insulators are adopted as standard, with consideration for ease of adjustment and noise countermeasures.
・At the time of testing: F:D=10,R:D=10
