Code No. 80230-AN008A
*Discontinued.
An updated MAX IV GT with improved handling and comfort, an ulimate street suspension.

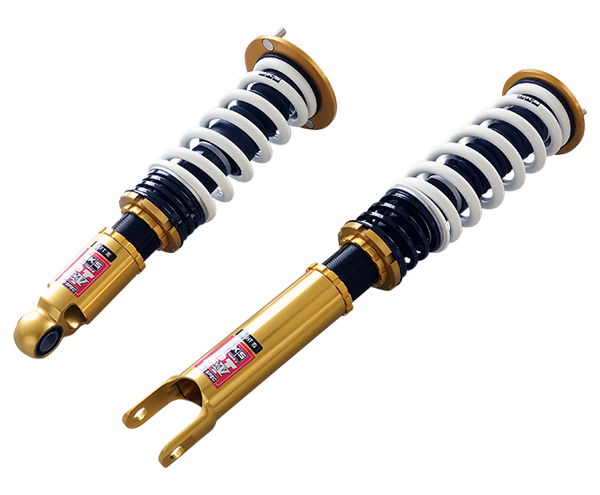

▲The above photo is an item for BNR32.
Application
| Engine | RB26DETT |
|---|---|
| Model Year | 89/08 - 94/12 |
| Remarks | Standard Vehicle |
Specification
| FRONT | REAR | |
|---|---|---|
| Damping force adjustment | 30 steps | 30 steps |
| Base valve | - | - |
| Height adjustable lower bracket | ○ | ○ |
| Upper mount | Rubber | Rubber |
| Inverted/Normal type | Normal | Normal |
| Damper/Spring layout | Coilover | Coilover |
| Spring rate change at factory | Possible | Possible |
| Damping force adjustment with wire | - | ○ |
| Helper spring (Spring rate N/mm) | ○ ( 19.8 ) | ○ ( 19.8 ) |
| Factory *2 | Test data | Adjustable range High - Low *3 |
Drivable range High - Low *4 |
||
|---|---|---|---|---|---|
| FRONT | Ride height *1 | 656 | ← | 695 ～ 627 | 695 ～ 629 |
| Against stock | -39 | ← | 0 ～ -68 | 0 ～ -66 | |
| REAR | Ride height *1 | 656 | ← | 671 ～ 608 | 671 ～ 608 |
| Against stock | -15 | ← | 0 ～ -63 | 0 ～ -63 | |
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.
Kit information
Spring of Full Kit
| F | R | |
|---|---|---|
| Spring rate N/mm(kgf/mm) | 98 ( 10 ) | 78 ( 8 ) |
| Free height (mm) | 200 | 220 |
| Spring type | Straight | Straight Barrel type |
| Recommended range to change spring rate N/mm(kgf/mm) | ±20 ( 2 ) | ±20 ( 2 ) |
Specification of damper
| F | R | |
|---|---|---|
| Damping force (Rebound/Damping)N* | 1400 / 340 | 720 / 350 |
| Default position of dial | 15 | 15 |
| Remaining damper stroke (Rebound/Damping)mm | 43 / 56 | 62 / 74 |
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
| F | R | |||||||
|---|---|---|---|---|---|---|---|---|
| Default | Test | Drivable limit High * |
Drivable limit Low * |
Default | Test | Drivable limit High * |
Drivable limit Low * |
|
| Length of case (mm) |
279 | ← | 316 | 270 | 410 | ← | 424 | 377 |
| Spring Set length(mm) |
237 | ← | 236 | 255 | 287 | ← | ← | 297 |
| Length to ride hight adjuster (mm) |
29 | ← | 67 | 2 | 43 | ← | 57 | 0 |
| Lever ratio | 1.03 | 1.12 | ||||||
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.
Test vehicle information
| F | R | ||
|---|---|---|---|
| Vehicle weight kg | - (880) | - (620) | |
| Tire size (Air pressure) kPa | 235 / 40 - 18 ( 230 ) | 235 / 40 - 18 ( 230 ) | |
| Wheel size | 9 JJ × 18 inset 22 | 9 JJ × 18 inset 22 | |
| Alignment (Toe/Camber) |
Test data | out 1 mm / -2°00' | in 0 mm / -2°33' |
| Standard value | 0 ～ in 2 mm / -0°55' ± 45' | in 2 ± 2 mm / -1°05' ± 30' | |
* Test data at HKS.

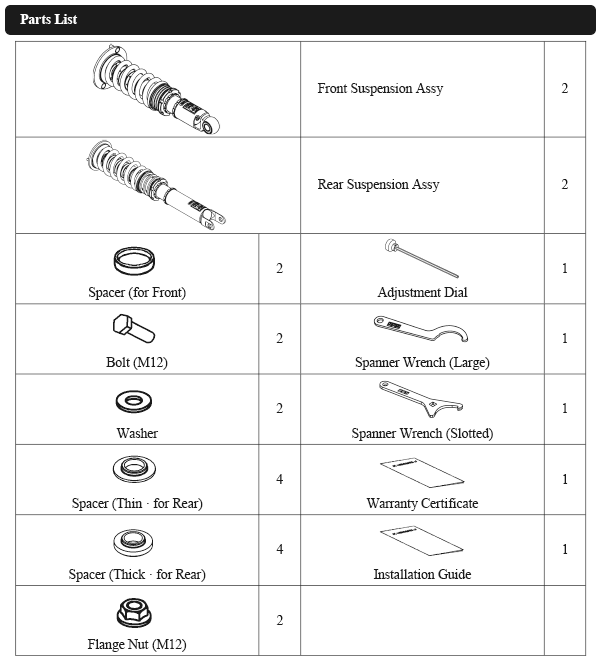

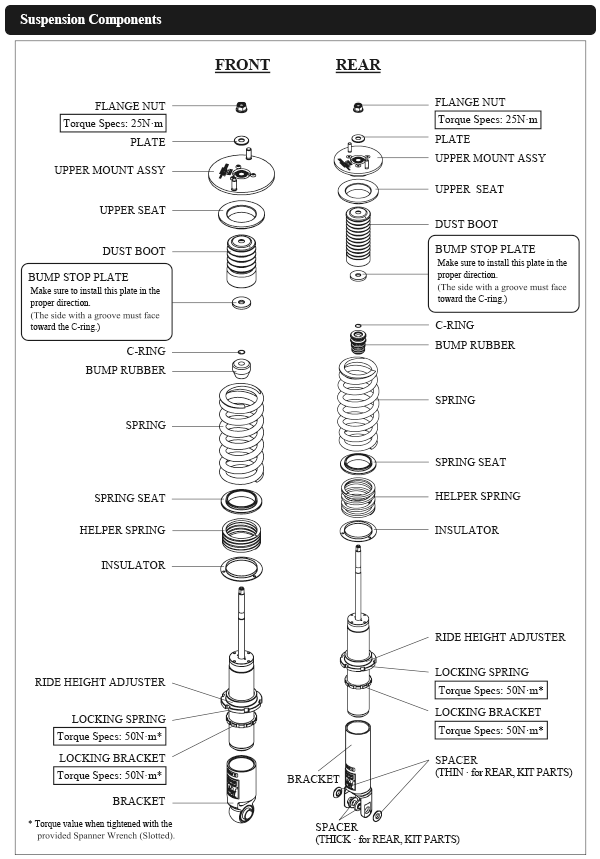

Parts List * It may be changed without prior notice.
Point
This coilover upgrades existing line-up damping force characteristics with the latest technology based on the HIPERMAX IV GT. Even with stiff springs, HKS achieves both great handling performance and ride comfort with a new damping force tuning method.
The product suits for various driving scenes as never before.
For users who prefer the ride comfort most, click the dial around 30 clicks counter-clockwise to loosen the damping force.
Feel the flexible ride and comfort with the perfect balance, however, it won't be soft too much when accelerating.
We recommend for the winding users click the dial around 15 clicks from the stiffest setting.
For circuit driving users click the dial around 10 clicks from the stiffest setting.
A stiff damping force setting without excessive firm feeling and it brings the best balance for both comfortable riding and driving performance.
The vehicle height data except test time came from the calculated value.
This does not mean that the actual vehicle height becomes the same.
● Required modifications when installing the product
A hole drilling for the rear damping force adjusting dial is required. (at a rear interior)
