MAX IV SP DRAG
GR SUPRA
GR SUPRA DB42

MAX IV SP DRAG

Code No. 80250-AT003DC





Return of Drag Specification Dampers. Introducing the latest technologies to suit modern drag racing requirements.





Suspension Error Canceler

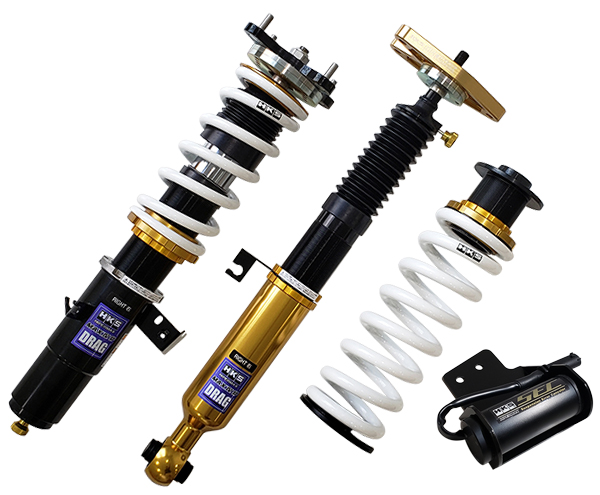

▲The above photo is an item for DB42.





Application

Engine B58
Model Year 19/05 -
Remarks *After lowering the vehicle height, the irradiation range of a radar and camera may become narrow that result in malfunction of TSS.

Specification

  FRONT REAR
Damping force adjustment 30 steps 30 steps
Base valve - -
Height adjustable lower bracket
Upper mount Spherical bearing Spherical bearing
Inverted/Normal type Inverted Normal
Damper/Spring layout Coilover Separated
Spring rate change at factory
Damping force adjustment with wire -
Helper spring
(Spring rate N/mm)
- -
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3
Drivable range
High - Low *4
FRONT Ride height *1 665 670 ~ 626 670 ~ 626
Against stock -22 -17 ~ -61 -17 ~ -61
REAR Ride height *1 678 686 ~ 623 686 ~ 623
Against stock -20 -12 ~ -75 -12 ~ -75

*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information

Spring of Full Kit

  F R
Spring rate N/mm(kgf/mm) 59 ( 6 ) 98 ( 10 )
Free height (mm) 200 250
Spring type Straight Straight
Recommended range to change spring rate N/mm(kgf/mm) +10(1) ±20 ( 2 )

Specification of damper

  F R
Damping force (Rebound/Damping)N* 378 / 927 3310 / 294
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 44 / 45 49 / 65

* The value of the damping force is at piston speed of 0.1m/sec.

Setting data

  F R
Default Test Drivable limit
High *
Drivable limit
Low *
Default Test Drivable limit
High *
Drivable limit
Low *
Length of
case (mm)
289 289 264 323 330 291
Spring
Set length(mm)
188 183 196 - - - -
Length to ride hight
adjuster (mm)
33 38 0 57 62 24
Lever ratio 1.18 1.69(spg) , 1.20(dmp)

* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information

  F R
Vehicle weight kg 785.5 (780) 744 (740)
Tire size (Air pressure) kPa 255 / 35 - 19 ( 220 ) 275 / 35 - 19 ( 220 )
Wheel size 9.5 J × 19 10.5 J × 19
Alignment
(Toe/Camber)
Test data in 0 mm / -2°07' in 0 mm / -1°30'
Standard value in 3.1 mm ± 2.3 mm / -1°45' ± 0°30' in 2.7 mm ± 2.3 mm / -2°00' ± 0°25'

* Test data at HKS.

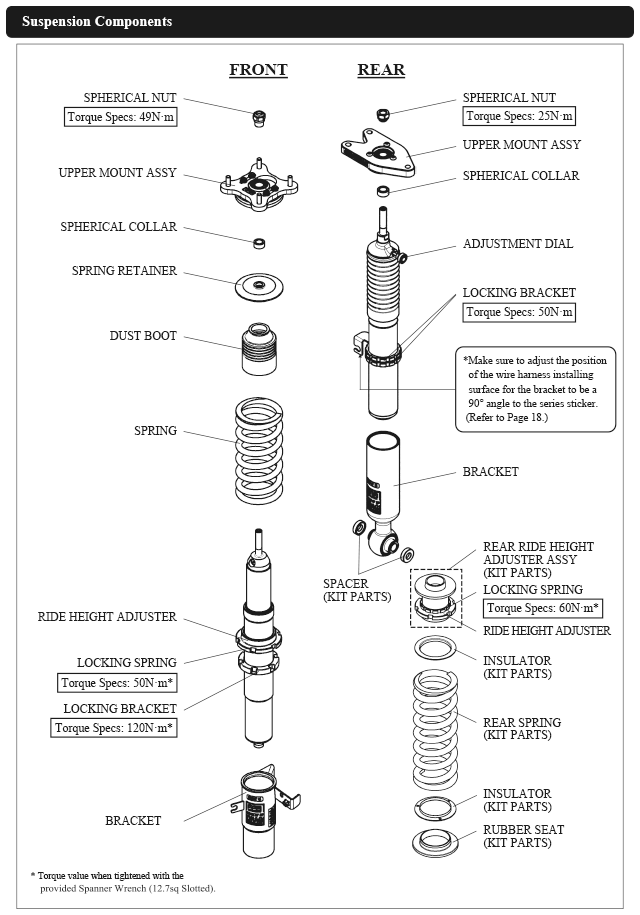

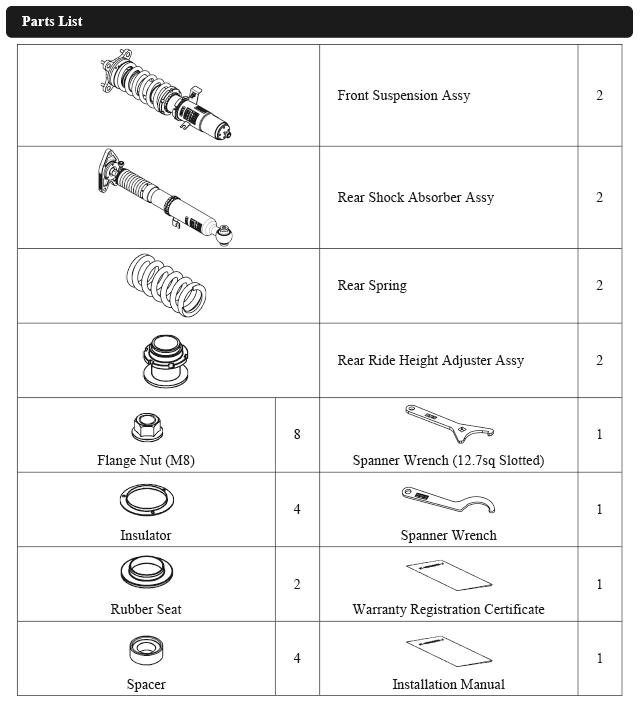

Parts List  * It may be changed without prior notice.




Point

・This is a special combination kit with HIPERMAX IV SP Drag and SEC (suspension error canceler) for GR Supra.
・This kit is packaged with the suspension error canceller which is required when the stock electric control shock absorber of GR Supra is removed.
・This package offers a better price compared to purchasing products separately.
 SEC:https://www.hks-power.co.jp/en/product_db/suspension/db/23945
