HIPERMAX SERIES

MAX IV SP

  • Single Tube
  • 30 levels
    Adjustable
    Damping
  • Adjustable
    Shock Body
  • Special Oil
  • PNE Coating
  • Aluminium
    Bracket
  • Pillow
    Upper Mount
  • Overhaul
    Available

Return of Drag Specification Dampers
Introducing the latest technologies to suit modern drag racing requirements

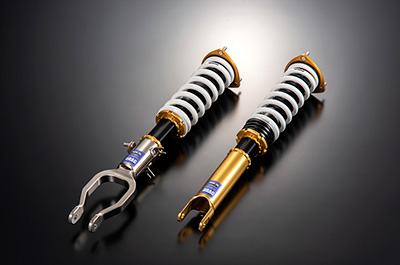

The drag suspension designed based on HIPERMAX II Drag Suspension.
Parts such 300mm long spring, helper spring, etc. are selected for each vehicle model to maintain sufficient stroke amount and traction.
The shock-body length adjustable type is chosen to widen the vehicle height setting range and stroke distribution.
This drag suspension guarantees its performance in drag race.

  • single tube
  • 30 levels
    Adjustable
    Damping
  • Adjustable
    Shock Body
  • Special Oil
  • PNE Coating
  • Aluminium
    Bracket
  • Pillow
    Upper Mount
  • Overhaul
    Available

HKS suspension is single tube! Application Chart


Overhaul

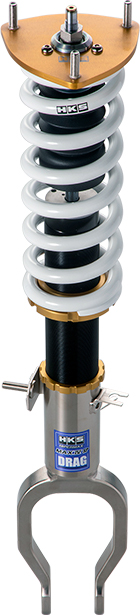

Single Tube Damper Design
The single tube damper design was selected from well-established HKS suspension.
Its large diameter piston contribute excellent response and traction assurance.
Dust Boot
Protect the shaft from the flying stones.
PNE Coating
Using this special surface coating provides 5 times better durability over standard galvanizing. This prevents build-up around the threads of the adjustment areas allowing for easier height adjustment.
Pillow Ball Upper Mount
With the pillow ball upper mount, the shock absorber detects fine movement and generates accurate damping force from the beginning of stroke. Unnecessary movement is reduced and stable driving is possible.
New Design Needle
Newly designed needle has been utilized to adjust the damping characteristics of the very low speed and middle and high speed dampening to pursue the linear change across entire speed range.
Reduction of Unsprung Weight
In order to reduce unsprung weight, bracket, ride height adjusters and lock nuts are made from aluminum. (Not for all vehicles)
30 Step Damping Force Adjustment
30 levels of dampening adjustment allow fine tune adjustment for each tire and course conditions.
