GTIII-RS/GTIII-SS PARTS Explanation of the product Application chart


Code No. 14008-AK009





OIL PARTS KIT GTIII-RS

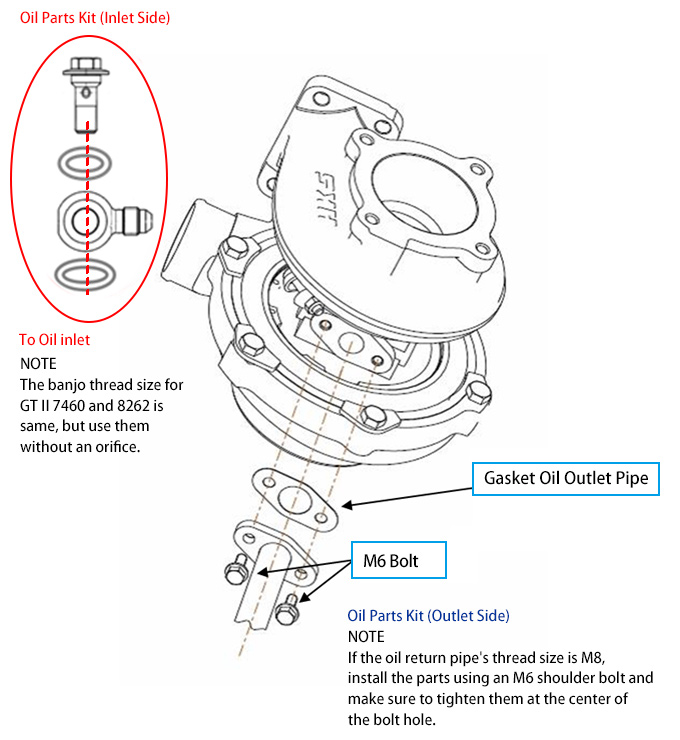

The oil parts kit for GTⅢ-RS' oil piping.

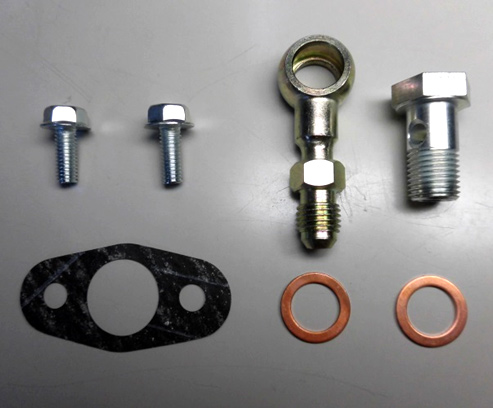

【KIT PARTS】
PRODUCT SPEC. QT REMARKS
BANJO BOLT M12 x P1.25 1 To install the oil
inlet parts
BANJO φ12 - AN4(M) 1
Cu. WASHER φ12 2
BOLT M6 x P1.0 2 To install the oil
outlet parts
OIL RETURN FLANGE GASKET   1


●WATER LINE SET  To Water Cooling Port

WATER LINE SET
(Available separately)
【Kit Parts】
  • Hose L=1000 x1
  • Banjo φ14 x2
  • Cu. Washer φ14 x4
  • Banjo Bolt M14-P1.5 x2
  • Hose Band #4 x2
  •
    【GT TURBINE WATER LINE SET】
    PIPE Dia. CODE No.
    φ8 1499-RA041
    φ10 1499-RA042
    Product Code No. Price Remarks
    OIL PARTS KIT for GTIII-RS 14008-AK009 A kit for oil piping of GTIII-RS universal turbocharger.
