製品情報 / PRODUCTGT SUPERCHARGER

ホーム  >  製品情報  >  スーパーチャージャー / SUPERCHARGER  >  汎用キット  >  リストリクターテスト

GT SUPERCHARGERGTスーパーチャージャー

Specifications

GTS4015HP
MODEL MAX IMPELLER
SPEED
MAX PRESSURE
RATIO
MAX
FLOW
POWER
RANGE
DRIVE
RATIO
UNIT
WEIGHT
rpm - m3/min ps - kg
GTS4015HP 110,000 2.6 8.1 100~150 9.875 3.5

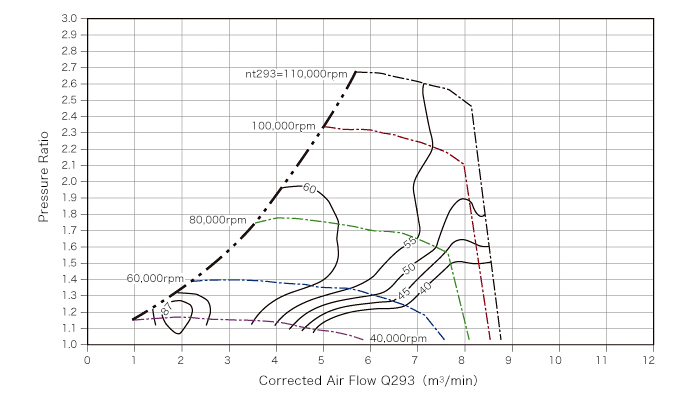

GT Supercharger Compressor Map (GTS4015HP)
GTS7040
MODEL MAX IMPELLER
SPEED
MAX PRESSURE
RATIO
MAX
FLOW
POWER
RANGE
DRIVE
RATIO
UNIT
WEIGHT
rpm - m3/min ps - kg
GTS7040 110,000 2.5 22 200~400 9.444 4.2

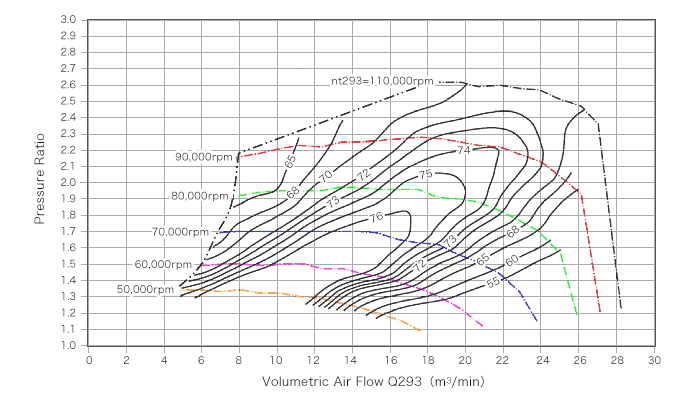

GT Supercharger Compressor Map (GTS7040)
GTS8550
MODEL MAX IMPELLER
SPEED
MAX PRESSURE
RATIO
MAX
FLOW
POWER
RANGE
DRIVE
RATIO
UNIT
WEIGHT
rpm - m3/min ps - kg
GTS8550 100,000 2.6 26 250~500 9.368 5.3

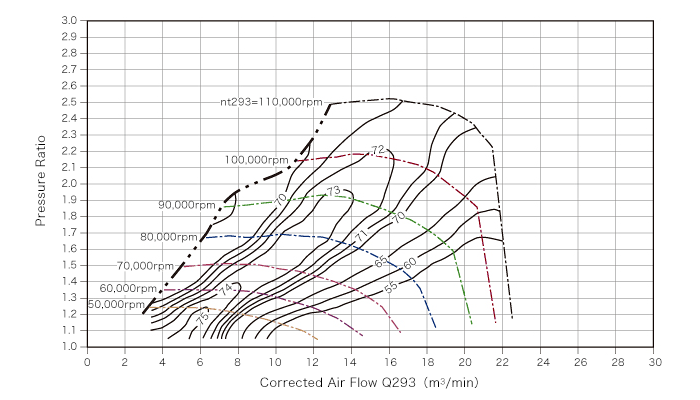

GT Supercharger Compressor Map (GTS8550)
GTS8555
MODEL MAX IMPELLER
SPEED
MAX PRESSURE
RATIO
MAX
FLOW
POWER
RANGE
DRIVE
RATIO
UNIT
WEIGHT
rpm - m3/min ps - kg
GTS8555 100,000 2.6 28 300~550 9.368 5.3

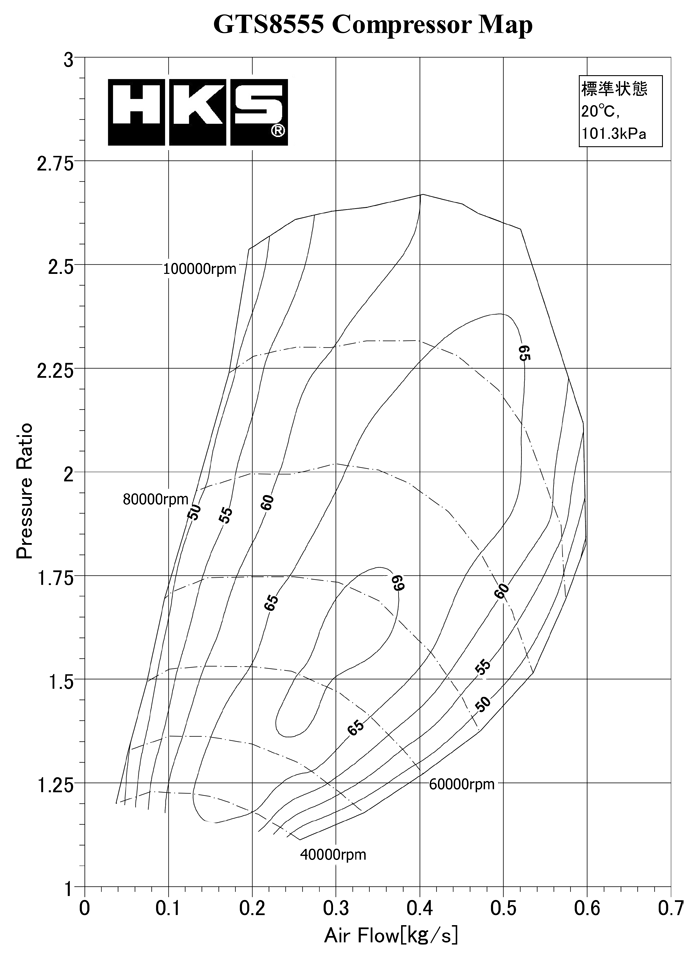

GT Supercharger Compressor Map (GTS8555)
