ROADSTER/MX-5 (ND)
CUSTOMIZEDPARTS
Over its previous three generations, ROADSTER/MX-5 has been delivered to over one million owners and remained a 2-seater sports car that admired around the world.
The new ROADSTER/MX-5, which has been designed aiming to be "Jinba Ittai" (Driver and vehicle as one), is much lighter than the previous generation. The light body is able to provide better driving feeling and exhilarating acceleration.
HKS has begun development of the exhaust part and suspension that will brings out the quality of the vehicle itself to provide better driving feeling.
HKS is foreseeing needs for the advanced tuning of this vehicle, and we will provide products that realize comfortable sports driving.
-

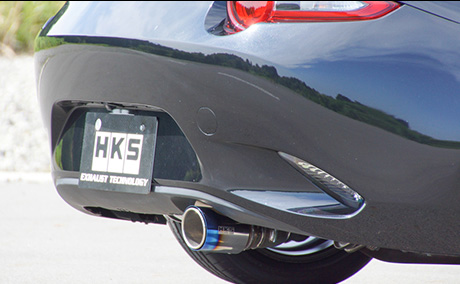

LEGAMAX Sports
Extreme Low Exhaust Pressure Design for Supercharger/Turbo Tuning
High exhaust efficiency is provided by the low exhaust pressure appropriate for supercharger and turbocharger tuning. The low-speed torque is improved, and high-speed torque can be improved with ECU ReFlash tool.
Natural sound liaison while shifting from low to high speed range induces acceleration.
Its comfortable & enjoyable exhaust sound may be loud, but it is appropriate level for street driving. -

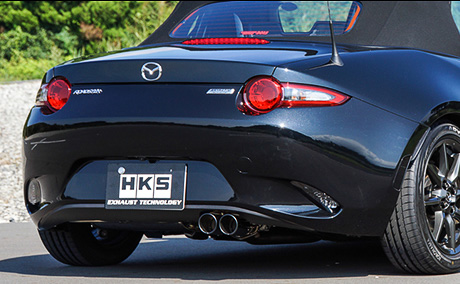

LEGAMAX Premium
The standard sports muffler creates the exciting sound and provides comfortability of daily driving.
The stock exhaust tips appear to be floating due to wide clearances between the tip and bumper and the size of the notch on the bumper. The 70mm dual exhaust tips on this product are well-balanced with the bumper notch, and the black chrome tips create a striking impression from the rear. Adding a little sound pressure to the original exhaust sound recreates the sporty sound quality making both daily driving and driving on winding roads enjoyable. Its moderate low-tone enhances the exhaust system's presence and the higher-tones imparting an elevated feeling to the driver.
-

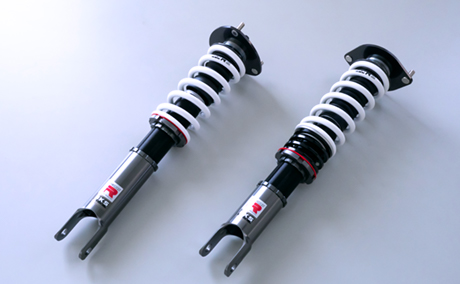

HIPERMAX R
he fun to drive at will and the balance can be adapted from circuit to winding road.
Reised Driving-Comfort, "Ultimate All-Rounder" -

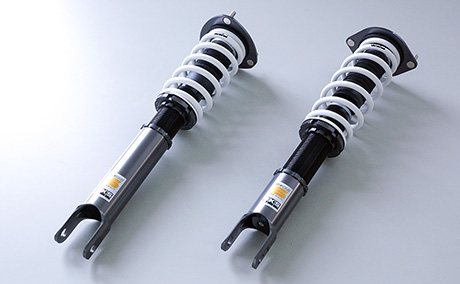

HIPERMAX S
Going beyond just ride comfort or handling performance, a new standard of "Driving Comfort" aims for comfort in ride but also in the peace of mind generated by handling performance and drivability. An uncompromising balance which delivers on all the demands of street driving.
-

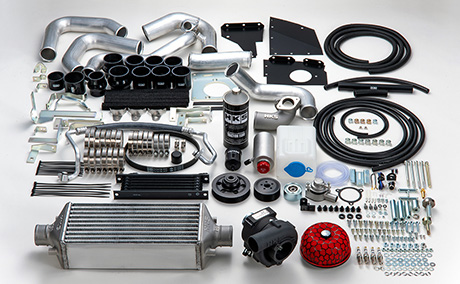

GT2 Supercharger Pro kit
This supercharger kit for MX-5 includes Full piping and intercooler, supercharger assy and mounting bracket, spark plugs 50003-M45HL, suction pipe and power flow air intake, cold air intake box with sound isolation, traction fluid, traction fluid cooler and washer fluid tank for relocation. Driving experience which is in line with the manufacturers original concept for the car: "Jinba Ittai" (THE ONENESS OF HORSE AND RIDER)
-
OIL FILTER
New concept oil filter improves oil pressure drop and flow properties.
The oil pressure drop and flow properties are improved approximately by 30% compared to current sports oil filters. The stress on the engine is reduced for better engine response.
-

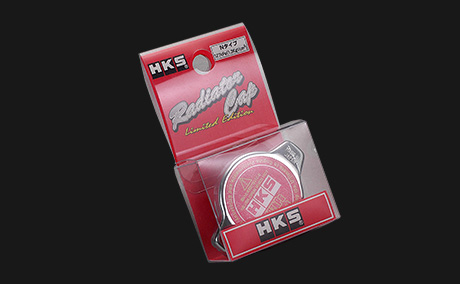

RADIATOR CAP
High qualtiy radiator cap with HKS logo complements the engine bay.
This radiator cap provides the reliable cooling performance under severe driving conditions. The injection-valve opening pressure is set to 1.1kgf/cm2, and silicone rubber is utilized as a packing part to improve sealing properties.
-

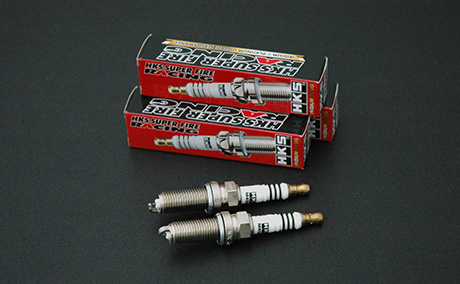

SUPER FIRE RACING
Upgraded Ignitionability, Durability and anti-insulation
It has improved ignitionability by the 0.6mm iridium alloys center electrode and platinum square chip, thermal edge and supporting spark gap. It also prevents from pile of carbon and insulation.
HKS parts for MAZDA ROADTER/MX-5 [ND5]
Engine | 1.5L (P5-VPS) | 2.0L (PE-VPS) | ||||
Code No. | Product | 2015-2018 | 2018 Facelift |
2015-2018 | 2018 Facelift |
Remarks |
EXHAUST | ||||||
---|---|---|---|---|---|---|
32018-AZ010 | LEGAMAX Premium | Detail | Detail | Detail | Detail | * Compatible with 990S grade. * Cannot be installed on vehicles with MAZDA SPEED rear underskirt (due to insufficient clearance). *Will not pass Japanese Exhaust Gas Regulations for 6MT (DBA-ND5RC) vehicles (P5-VPR) with i-ELOOP + i-stop (idling stop) but can be installed. |
32018-AZ011 | LEGAMAX Sports | Detail | Detail | Detail | Detail | * Compatible with 990S grade. * Not confirmed for MAZDA SPEED rear underskirt equipped vehicles. * Will not pass Japanese Exhaust Gas Regulations for 6MT (DBA-ND5RC) vehicles (P5-VPR) with i-ELOOP + i-stop (idling stop) but can be installed. |
SUSPENSION | ||||||
---|---|---|---|---|---|---|
80310-AZ002 | HIPERMAX R | Detail | Detail | Detail | Detail | |
80300-AZ003 | HIPERMAX S | Detail | Detail | Detail | Detail |
ELECTRONICS | ||||||
---|---|---|---|---|---|---|
42015-AZ101 | Flash Editor | Detail ※ |
× | × | × | *Only compatible with 15/05 - 18/06〔DBA- ND5RC〕 (not compatible with 18/07~〔5BA- ND5RC〕) (Unconfirmed for [DBA-ND5RC] 6MT vehicles (P5-VPR) with i-ELOOP + i-stop (idling stop)) *Confrimed with only JDM models |
SUPERCHARGER | ||||||
---|---|---|---|---|---|---|
12001-KZ001 | GT2 SUPERCHARGER Pro Kit |
× | × | Detail | × | Engine management part is not included. (Resetting of fuel & ignition is required.) Applicable for left hand drive. NOT tested with right hand drive and 2019 model. |
ENGINE | ||||||
---|---|---|---|---|---|---|
24996-AK041 | FINE TUNE V-BELT | Detail | Detail | Detail | Detail | For air conditioner and alternator usage, applicable with ROADSTER (1.5L) and ROADSTER RF (2.0L) |
24996-AK042 | FINE TUNE V-BELT | Detail | Detail | × | × | For water pump usage, applicable with ROADSTER(1.5L) |
24996-AK043 | FINE TUNE V-BELT | × | × | Detail | Detail | For water pump usage, applicable with ROADSTER RF (2.0L) |
OIL | ||||||
---|---|---|---|---|---|---|
52001-AK153 | SUPER ZERO RACING 0W20 1L |
Detail | Detail | Detail | Detail | Stock viscosity: 0W-20 Required amount: 4.1L (4.3L when changing oil filter) |
52001-AK154 | SUPER ZERO RACING 0W20 4L |
Detail | Detail | Detail | Detail | Stock viscosity: 0W-20 Required amount: 4.1L (4.3L when changing oil filter) |
52001-AK147 | SUPER OIL Premium 0W-20 1L API SP |
Detail | Detail | Detail | Detail | Stock viscosity: 0W-20 Required amount: 4.1L (4.3L when changing oil filter) |
52001-AK148 | SUPER OIL Premium 0W-20 4L API SP |
Detail | Detail | Detail | Detail | Stock viscosity: 0W-20 Required amount: 4.1L (4.3L when changing oil filter) |
52009-AK005 | OIL FILTER TYPE1 | Detail | Detail | Detail | Detail | D68 X H65 / M20 X P1.5 (mm) |
15009-AK004 | RADIATOR CAP | Detail | Detail | Detail | Detail | S-TYPE 108kPa (1.1kgf/cm2) Stock valve opening pressure: 108kPa (1.1kgf/cm2) |
PLUG | ||||||
---|---|---|---|---|---|---|
50003-M40HL | SUPER FIRE RACING PLUG M40HL |
Detail | Detail | Detail | Detail | NGK No. 8 equivalent (stock heat value No. 7), 4 pcs required Stock spark plug: M12 long reach HEX14:7 |
50003-M45HL | SUPER FIRE RACING PLUG M45HL |
Detail | Detail | Detail | Detail | NGK No. 9 equivalent (stock heat value No. 7), 4 pcs required Stock spark plug: M12 long reach HEX14:7 |
50003-M50HL | SUPER FIRE RACING PLUG M50HL |
Detail | Detail | Detail | Detail | NGK No. 10 equivalent (stock heat value No. 7), 4 pcs required Stock spark plug: M12 long reach HEX14:7 |
* These products are in development. The specification might change.
